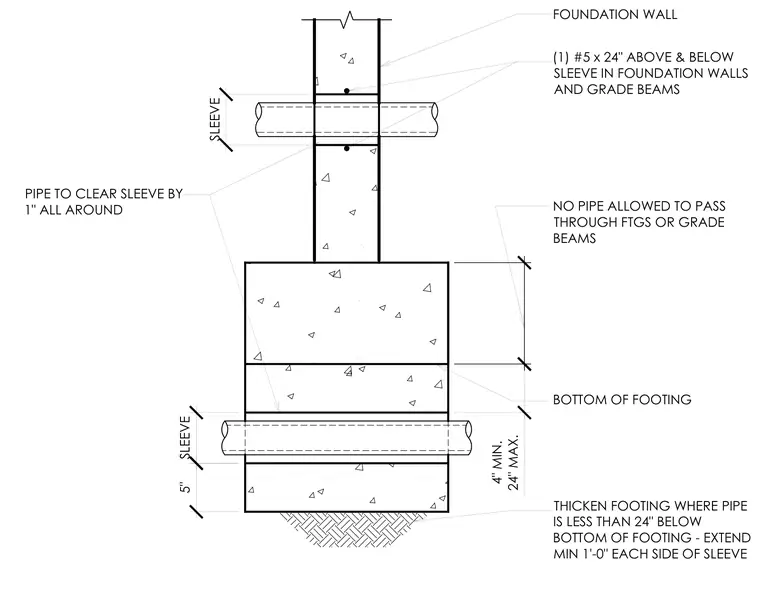

A pipe penetrates a concrete foundation wall through a sleeve with a one-inch clearance all around. One number five bar by twenty-four inches long is placed above and below the sleeve in foundation walls and grade beams. A separate note specifies that no pipe is allowed to pass through footings or grade beams. Where a pipe is located less than twenty-four inches below the bottom of the footing, the footing must be thickened and extended a minimum of one foot on each side of the sleeve.
PIPE TO CLEAR SLEEVE BY 1" ALL AROUND FOUNDATION WALL (1) #5 x 24" ABOVE & BELOW SLEEVE IN FOUNDATION WALLS AND GRADE BEAMS NO PIPE ALLOWED TO PASS THROUGH FTGS OR GRADE BEAMS BOTTOM OF FOOTING THICKEN FOOTING WHERE PIPE IS LESS THAN 24" BELOW BOTTOM OF FOOTING - EXTEND MIN 1'-0" EACH SIDE OF SLEEVE 5" SLEEVE 4" MIN. 24" MAX. SLEEVE
