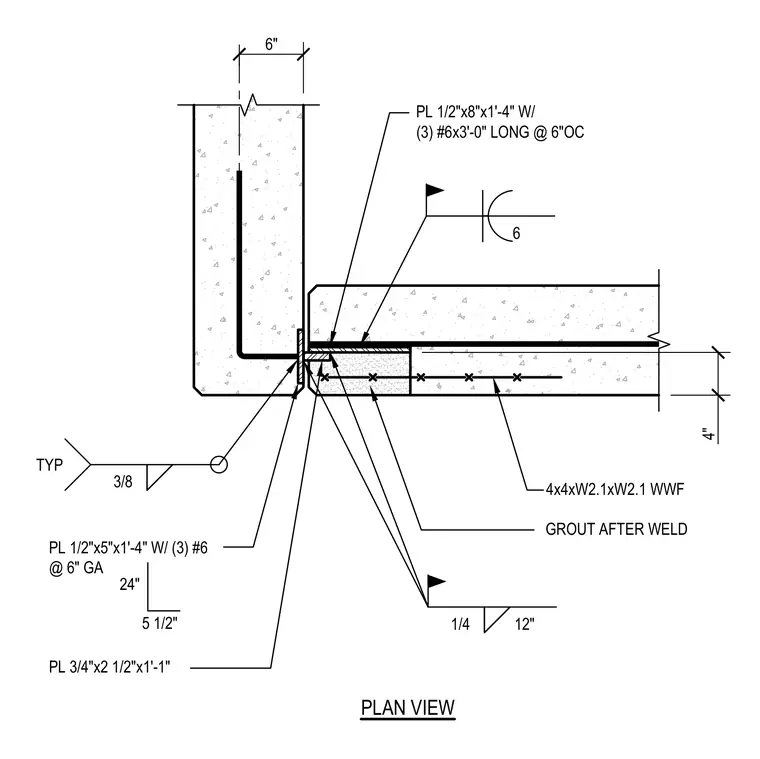

A corner connection between precast concrete panels uses embedded steel plates and welded anchorage. A 1/2 inch by 8 inch by 1 foot 4 inch plate anchored with three #6 reinforcing bars at 6 inches on center connects to the main precast panel assembly. A 1/2 inch by 5 inch by 1 foot 4 inch plate with three #6 bars at 6 inches gauge and a 3/4 inch by 2 1/2 inch by 1 foot 1 inch plate tie the corner elements together. Field welds are specified with 3/8 inch typical fillet welds and 1/4 inch fillet welds spaced at 12 inches. The joint is finished with welded wire reinforcement (4x4-W2.1xW2.1 WWF) and filled with grout after welding.
4" PL 3/4"x2 1/2"x1'-1" 4x4xW2.1xW2.1 WWF GROUT AFTER WELD 1/4 12" 6" 3/8 TYP PL 1/2"x5"x1'-4" W/ (3) #6 @ 6" GA 5 1/2" 24" PLAN VIEW 6 PL 1/2"x8"x1'-4" W/ (3) #6x3'-0" LONG @ 6"OC
