Structural · S-7ZENH

Seismic Bracing Requirements at Roof Stacks

Elements

Roofs Bracing

About this detail

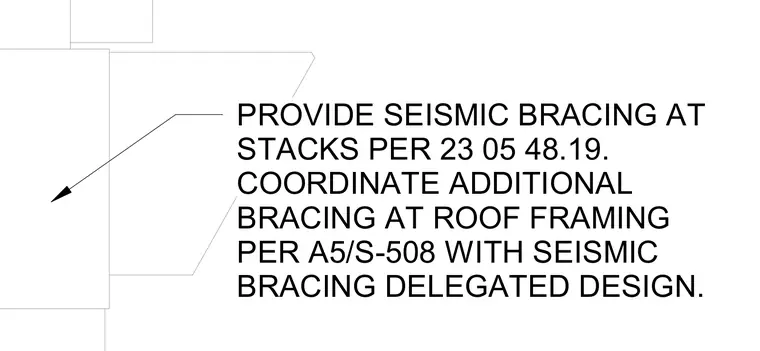

Provide seismic bracing at stacks per specification 23 05 48.19. Coordinate additional bracing at roof framing per detail A5 on sheet S-508 with seismic bracing delegated design.

PROVIDE SEISMIC BRACING AT STACKS PER 23 05 48.19. COORDINATE ADDITIONAL BRACING AT ROOF FRAMING PER A5/S-508 WITH SEISMIC BRACING DELEGATED DESIGN.
