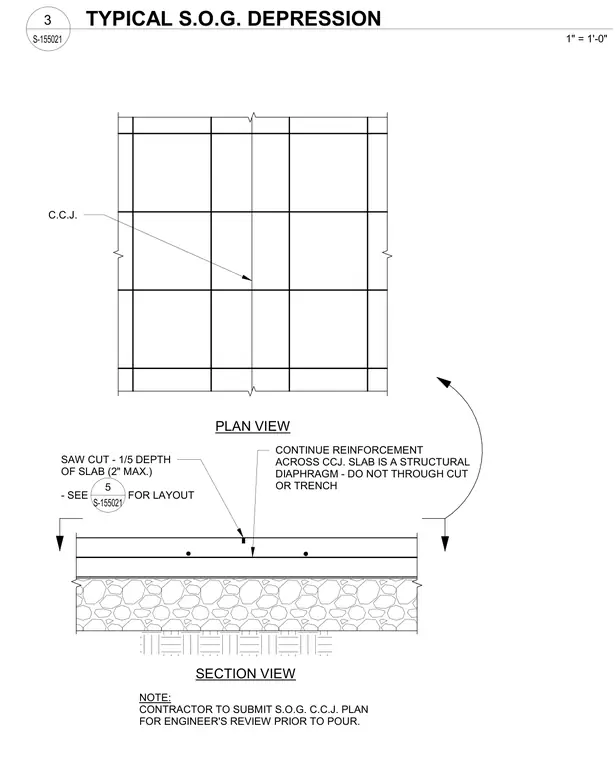

A crack control joint in a slab on grade features a saw cut depth equal to one-fifth of the slab depth with a two-inch maximum. Reinforcing steel continues uninterrupted across the control joint because the slab acts as a structural diaphragm. The contractor must not through-cut or trench the control joint and must submit a slab on grade crack control joint plan for the engineer's review prior to pouring concrete.
SAW CUT - 1/5 DEPTH OF SLAB (2" MAX.) - SEE FOR LAYOUT CONTINUE REINFORCEMENT ACROSS CCJ. SLAB IS A STRUCTURAL DIAPHRAGM - DO NOT THROUGH CUT OR TRENCH C.C.J. SECTION VIEW PLAN VIEW NOTE: CONTRACTOR TO SUBMIT S.O.G. C.C.J. PLAN FOR ENGINEER'S REVIEW PRIOR TO POUR. 5 S-155021 S-155021 1" = 1'-0" 3 TYPICAL S.O.G. DEPRESSION
