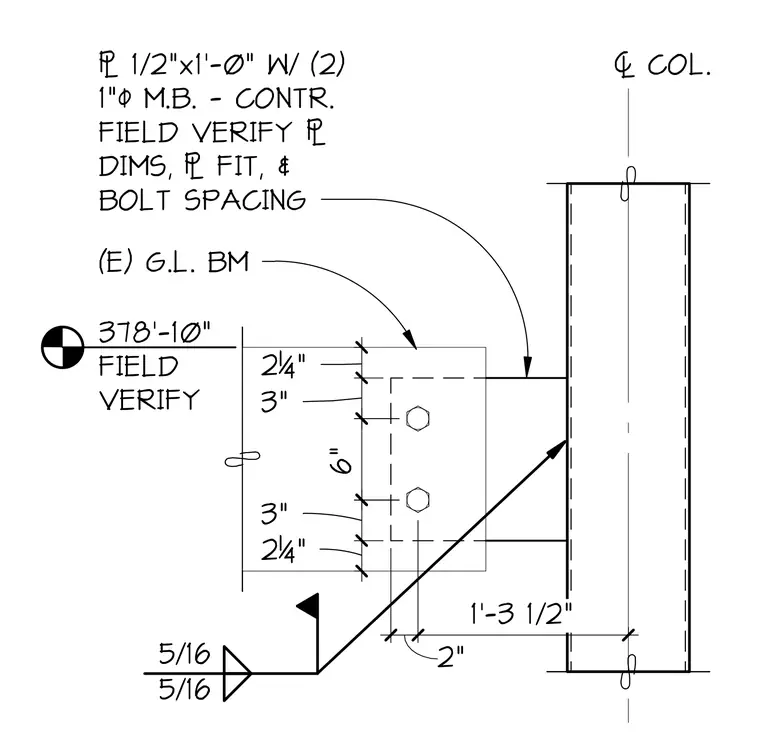

An existing girder or beam connects to a structural column using a one-half-inch by one-foot-zero-inch plate welded to the column with five-sixteenth-inch fillet welds. The beam web fastens to the plate using two one-inch-diameter machine bolts spaced at three inches with two-and-a-quarter-inch edge distances. The contractor must field verify plate dimensions, fit, and bolt spacing before installation. An elevation of three hundred seventy-eight feet ten inches requires field verification.
378'-10" FIELD VERIFY 3" 2 1 / 4" 6" 2 1 / 4" 3" 2¼" 3" 3" 2¼" 5/16 5/16 2" 1'-3 1/2" ! COL. (E) G.L. BM & 1/2"x1'-0" W/ (2) 1") M.B. - CONTR. FIELD VERIFY & DIMS, & FIT, & BOLT SPACING
