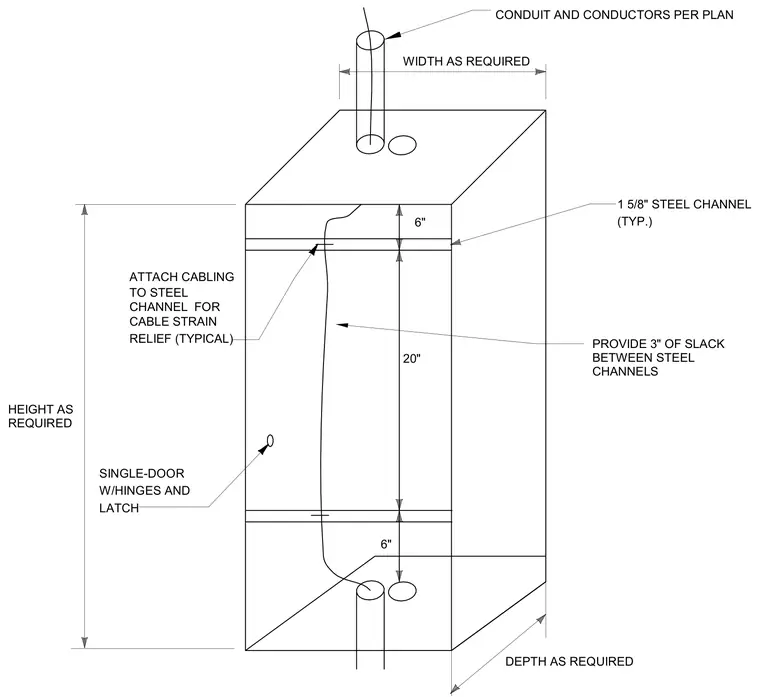

The junction box features a single door with hinges and a latch, housing internal one and five-eighths inch steel channels placed with spacing as required. Cabling enters via conduit and conductors per plan, attached to the steel channels for strain relief. Three inches of slack is provided between the steel channels to maintain proper cable tension and routing.
1 5/8" STEEL CHANNEL (TYP.) CONDUIT AND CONDUCTORS PER PLAN ATTACH CABLING TO STEEL CHANNEL FOR CABLE STRAIN RELIEF (TYPICAL) SINGLE-DOOR W/HINGES AND LATCH 6" 20" 6" HEIGHT AS REQUIRED WIDTH AS REQUIRED PROVIDE 3" OF SLACK BETWEEN STEEL CHANNELS DEPTH AS REQUIRED
