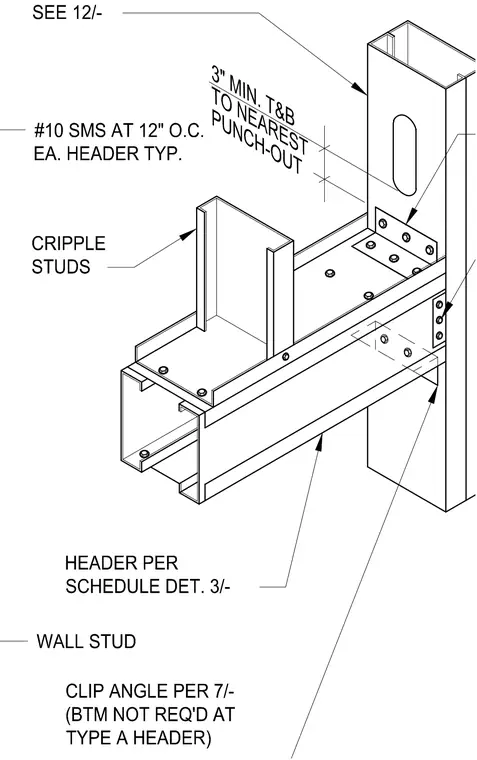

This assembly consists of a cold-formed steel header, sized per schedule detail 3, framed into a vertical wall stud. The header is secured to the jamb stud using clip angles specified per detail 7, with the bottom clip angle omitted for Type A headers. A minimum 3-inch clearance is maintained from the top and bottom of the connection to the nearest stud punch-out. Cripple studs are fastened to the top of the header using number 10 sheet metal screws spaced at 12 inches on center, typical for each header.
