Structural · S-7YDJT

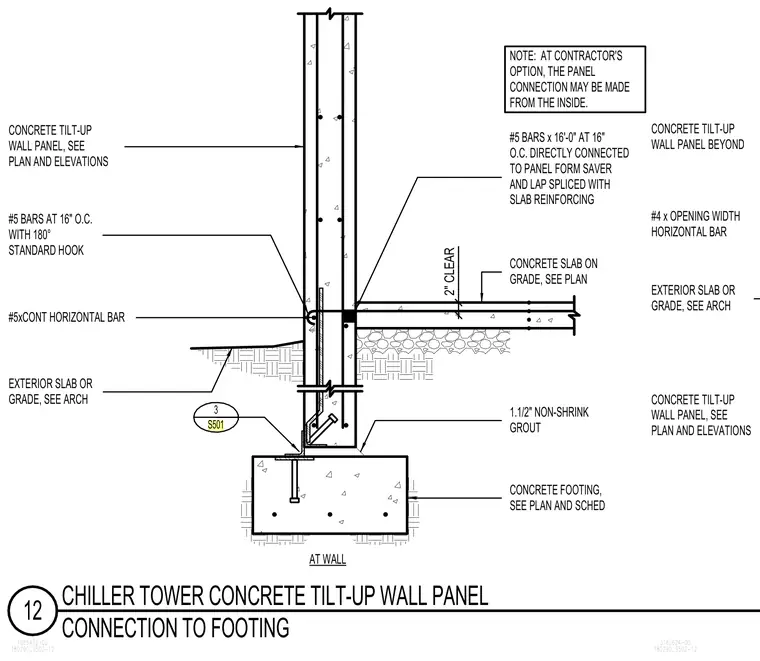

Chiller Tower Concrete Tilt-Up Wall Panel Connection to Footing

Materials

Concrete Masonry / CMU

Elements

Walls Floors / Slabs Foundations / Footings Arches Connections / Plates Reinforcing Roof / Floor Openings

Connections

Rebar Splice / Development

About this detail

A concrete tilt-up wall panel bears on a concrete footing with one and one-half inches of non-shrink grout beneath the panel base. Number five vertical reinforcing bars at sixteen inches on center connect directly to a panel form saver and lap splice with the slab reinforcing, featuring one hundred eighty-degree standard hooks. A number five continuous horizontal bar runs through the wall base. An exterior slab on grade meets the wall on the exterior side, while an interior concrete slab on grade ties into the panel with two inches of clearance. The contractor has the option to execute the panel connection from the inside.
