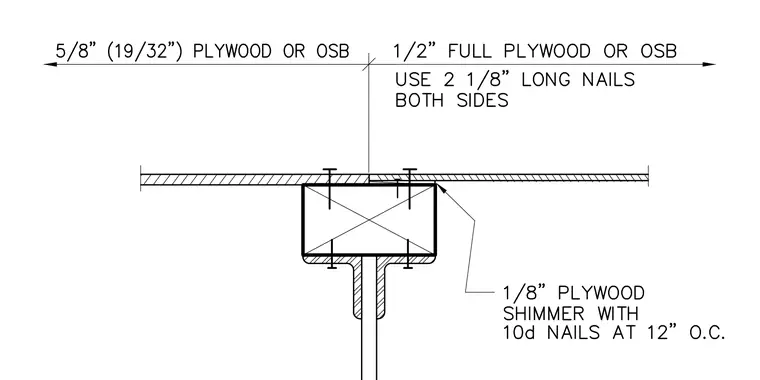

A 5/8-inch or 19/32-inch plywood or OSB panel meets a 1/2-inch full plywood or OSB panel over a wood framing nailer. The assembly uses two 2-1/8-inch long nails on both sides for fastening. A 1/8-inch plywood shim is included with 10d nails spaced at 12 inches on center. The wood nailer is attached to the top flange of a steel tee structural member.
