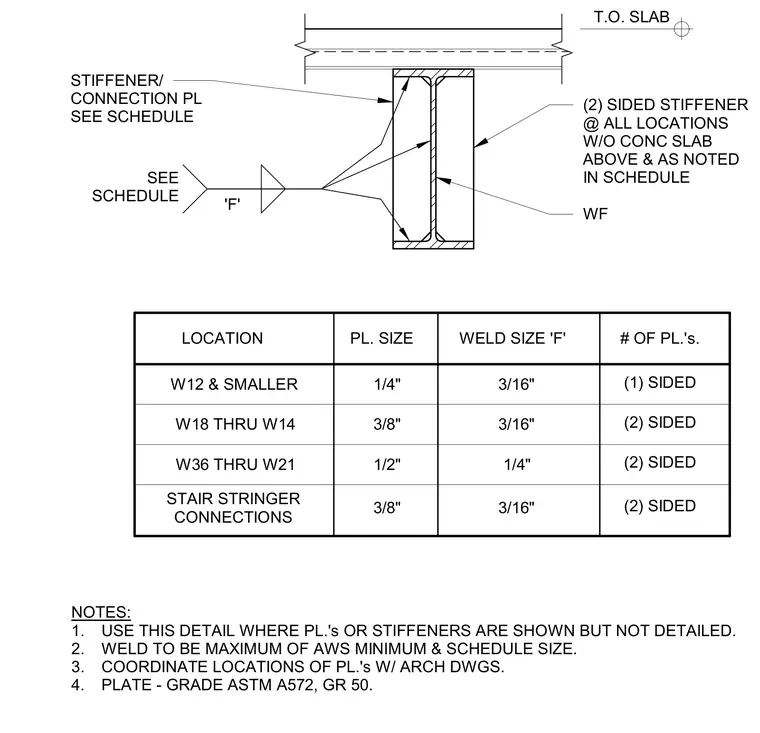

Standard stiffener plate and connection plate configurations for wide-flange steel shapes and stair stringers below a concrete slab. The connection utilizes ASTM A572 Grade 50 plates welded to the wide-flange member web and flanges with fillet welds ranging from three-sixteenths to one-quarter inch. Plate sizes and single or two-sided configurations vary by structural member size, specifying one-quarter inch plates for W12 and smaller, three-eighths inch plates for W18 through W14 and stair stringers, and one-half inch plates for W36 through W21. Two-sided stiffeners are required at all locations without a concrete slab above and as noted in the schedule.
W12 & SMALLER W18 THRU W14 W36 THRU W21 STAIR STRINGER CONNECTIONS LOCATION T.O. SLAB (2) SIDED STIFFENER @ ALL LOCATIONS W/O CONC SLAB ABOVE & AS NOTED IN SCHEDULE # OF PL.'s. (1) SIDED (2) SIDED (2) SIDED (2) SIDED 3/16" WELD SIZE 'F' 3/16" 1/4" 3/16" STIFFENER/ CONNECTION PL SEE SCHEDULE 1/4" 1/2" 3/8" 3/8" PL. SIZE NOTES: 1. USE THIS DETAIL WHERE PL.'s OR STIFFENERS ARE SHOWN BUT NOT DETAILED. 2. WELD TO BE MAXIMUM OF AWS MINIMUM & SCHEDULE SIZE. 3. COORDINATE LOCATIONS OF PL.'s W/ ARCH DWGS. 4. PLATE - GRADE ASTM A572, GR 50. SEE SCHEDULE 'F' WF
