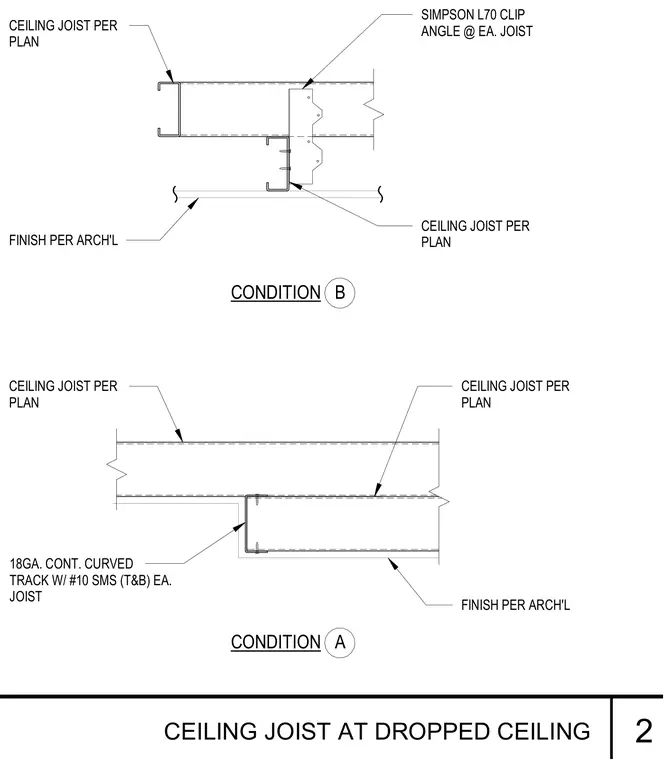

Cold-formed steel ceiling joists frame into a dropped ceiling transition utilizing two distinct conditions. Condition A incorporates an eighteen gauge continuous curved track secured at the top and bottom with number ten sheet metal screws at each joist. Condition B utilizes a Simpson L70 clip angle attached to each joist. Architectural finishes are applied below per architectural plans.
CEILING JOIST PER PLAN CONDITION A CONDITION B CEILING JOIST PER PLAN FINISH PER ARCH'L SIMPSON L70 CLIP ANGLE @ EA. JOIST CEILING JOIST PER PLAN FINISH PER ARCH'L 18GA. CONT. CURVED TRACK W/ #10 SMS (T&B) EA. JOIST CEILING JOIST PER PLAN CEILING JOIST AT DROPPED CEILING 2
