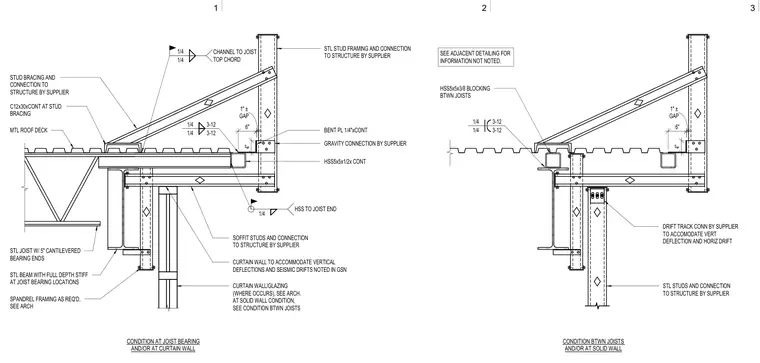

A steel joist with 5-inch cantilevered bearing ends rests on a steel beam equipped with full-depth stiffeners at joist bearing locations. A continuous C12x30 channel supports the steel stud bracing, while a continuous HSS5x5x1/2 member and continuous 1/4-inch bent plate tie into the gravity connection. A one-inch plus or minus gap is provided at the parapet wall to accommodate vertical deflections and seismic drifts, featuring a 1/4-inch fillet weld to the joist end and joist top chord. An alternate condition between joists incorporates an HSS5x5x3/8 blocking member and a drift track connection designed by the supplier.
GAP 1" ± STL JOIST W/ 5" CANTILEVERED BEARING ENDS STL BEAM WITH FULL DEPTH STIFF AT JOIST BEARING LOCATIONS SPANDREL FRAMING AS REQ'D, SEE ARCH MTL ROOF DECK C12x30xCONT AT STUD BRACING STUD BRACING AND CONNECTION TO STRUCTURE BY SUPPLIER CURTAIN WALL/GLAZING (WHERE OCCURS), SEE ARCH. AT SOLID WALL CONDITION, SEE CONDITION BTWN JOISTS SOFFIT STUDS AND CONNECTION TO STRUCTURE BY SUPPLIER STL STUD FRAMING AND CONNECTION TO STRUCTURE BY SUPPLIER GRAVITY CONNECTION BY SUPPLIER 6" 4" HSS5x5x1/2x CONT 1/4 HSS TO JOIST END 1/4 1/4 CHANNEL TO JOIST TOP CHORD 1/4 1/4 3-12 3-12 BENT PL 1/4"xCONT CURTAIN WALL TO ACCOMMODATE VERTICAL DEFLECTIONS AND SEISMIC DRIFTS NOTED IN GSN CONDITION AT JOIST BEARING AND/OR AT CURTAIN WALL GAP 1" ± STL STUDS AND CONNECTION TO STRUCTURE BY SUPPLIER 6" 4" CONDITION BTWN JOISTS AND/OR AT SOLID WALL SEE ADJACENT DETAILING FOR INFORMATION NOT NOTED. 1/4 1/4 3-12 3-12 DRIFT TRACK CONN BY SUPPLIER TO ACCOMODATE VERT DEFLECTION AND HORIZ DRIFT HSS5x5x3/8 BLOCKING BTWN JOISTS 3 2 1
