A concrete slab on grade construction joint between a first pour and a second pour rests over a prepared subbase. Continuous reinforcement extends across the joint with a 32-inch lap splice, maintaining structural diaphragm integrity without through-cutting or trench sawing the fresh side of the joint. The concrete interface requires intentional roughening to 1/4 inch after cleaning away all laitance, and a saw cut mirrors a crack control joint on the fresh side. Two inches of concrete clearance is provided typically, and the contractor must submit a slab on grade pour plan for the engineer's review prior to execution with a maximum pour dimension of 200 feet and a 2-to-1 maximum aspect ratio.

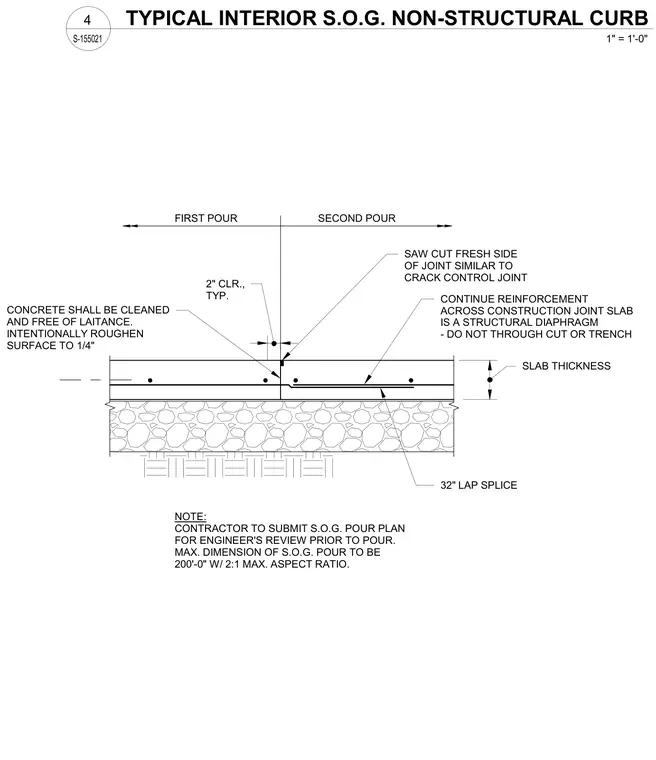

CONTINUE REINFORCEMENT ACROSS CONSTRUCTION JOINT SLAB IS A STRUCTURAL DIAPHRAGM - DO NOT THROUGH CUT OR TRENCH SAW CUT FRESH SIDE OF JOINT SIMILAR TO CRACK CONTROL JOINT FIRST POUR SECOND POUR NOTE: CONTRACTOR TO SUBMIT S.O.G. POUR PLAN FOR ENGINEER'S REVIEW PRIOR TO POUR. MAX. DIMENSION OF S.O.G. POUR TO BE 200'-0" W/ 2:1 MAX. ASPECT RATIO. SLAB THICKNESS 2" CLR., TYP. CONCRETE SHALL BE CLEANED AND FREE OF LAITANCE. INTENTIONALLY ROUGHEN SURFACE TO 1/4" 32" LAP SPLICE S-155021 1" = 1'-0" 4 TYPICAL INTERIOR S.O.G. NON-STRUCTURAL CURB
