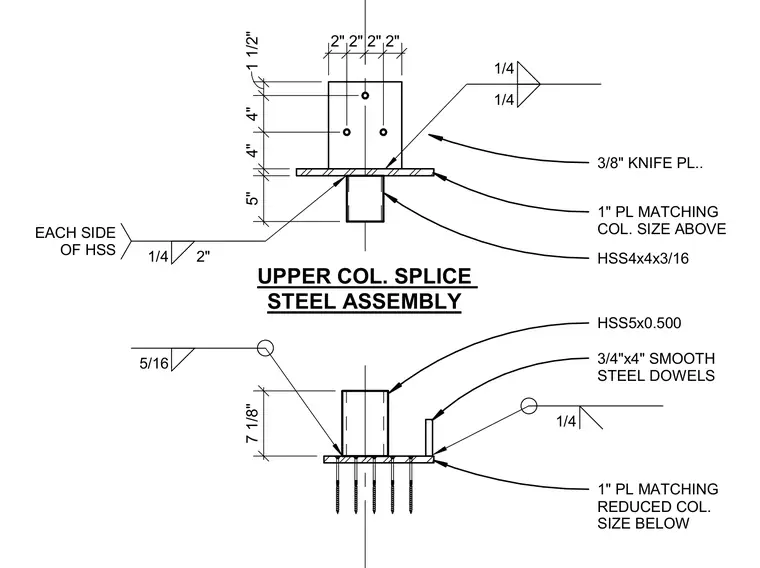

An upper HSS5x0.500 structural steel column connects to a lower reduced-size HSS4x4x3/16 column assembly. The joint is detailed with a 1-inch plate matching the column size above, a 3/8-inch knife plate, and 3/4-inch by 4-inch smooth steel dowels. Fillet welds of 1/4-inch and 5/16-inch sizes secure the plates and hollow structural sections on each side.
HSS5x0.500 1 1/2" 4" 4" 7 1/8" UPPER COL. SPLICE STEEL ASSEMBLY 1" PL MATCHING REDUCED COL. SIZE BELOW 5/16 1/4 2" EACH SIDE OF HSS 1/4 1/4 HSS4x4x3/16 1" PL MATCHING COL. SIZE ABOVE 3/4"x4" SMOOTH STEEL DOWELS 1/4 3/8" KNIFE PL.. 2" 2" 2" 2" 5"
