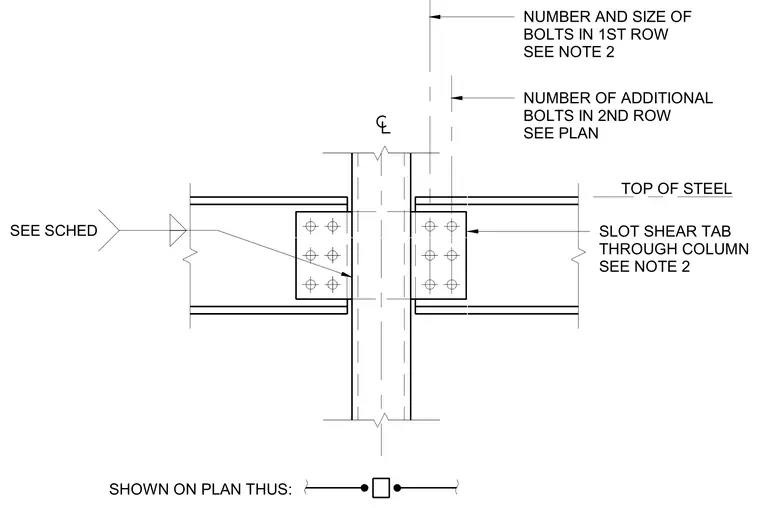

Steel floor beams connect to a hollow structural section column using slotted single-plate shear tabs. The shear tab plate slots through the column wall and welds in place as indicated by the schedule. Structural bolts fasten the beam web to the shear tab in a multi-row configuration determined by plan requirements. Top of steel elevations align across the intersecting members.
SLOT SHEAR TAB THROUGH COLUMN SEE NOTE 2 TOP OF STEEL SHOWN ON PLAN THUS: SEE SCHED NUMBER AND SIZE OF BOLTS IN 1ST ROW SEE NOTE 2 NUMBER OF ADDITIONAL BOLTS IN 2ND ROW SEE PLAN
