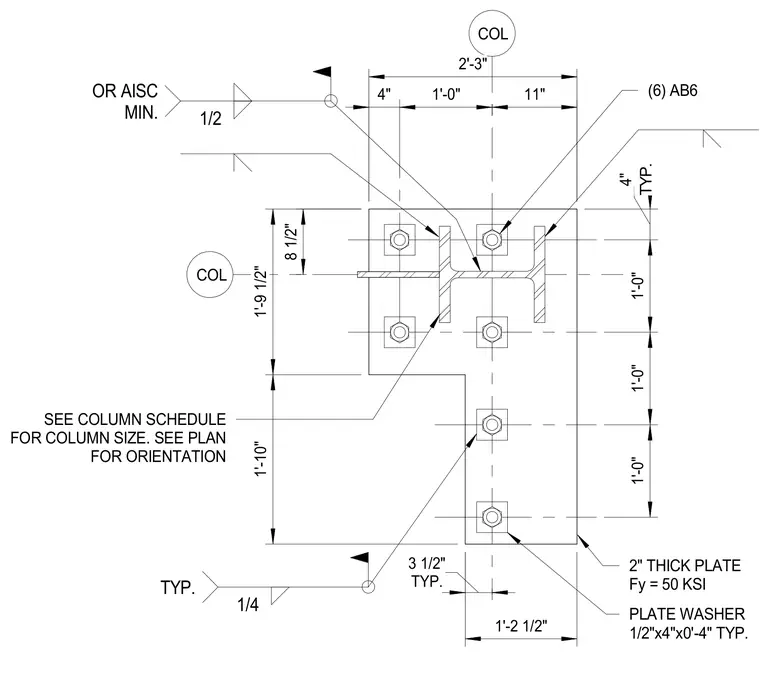

A heavy steel column base plate connection is anchored by six anchor bolts with custom plate washers measuring one-half inch by four inches by four inches. The base plate is fabricated from two-inch thick steel with a yield strength of fifty ksi. Fillet welds of one-quarter inch size secure the column profile to the base plate as specified per AISC standards. Column dimensions and orientation are coordinated per the structural column schedule and framing plans.
2" THICK PLATE Fy = 50 KSI (6) AB6 PLATE WASHER 1/2"x4"x0'-4" TYP. COL COL 1/2 OR AISC MIN. 4" 1'-0" 11" 1'-10" 1'-9 1/2" 8 1/2" TYP. 4" 1'-0" 1'-0" 1'-0" TYP. 3 1/2" 2'-3" 1/4 TYP. 1'-2 1/2" SEE COLUMN SCHEDULE FOR COLUMN SIZE. SEE PLAN FOR ORIENTATION
