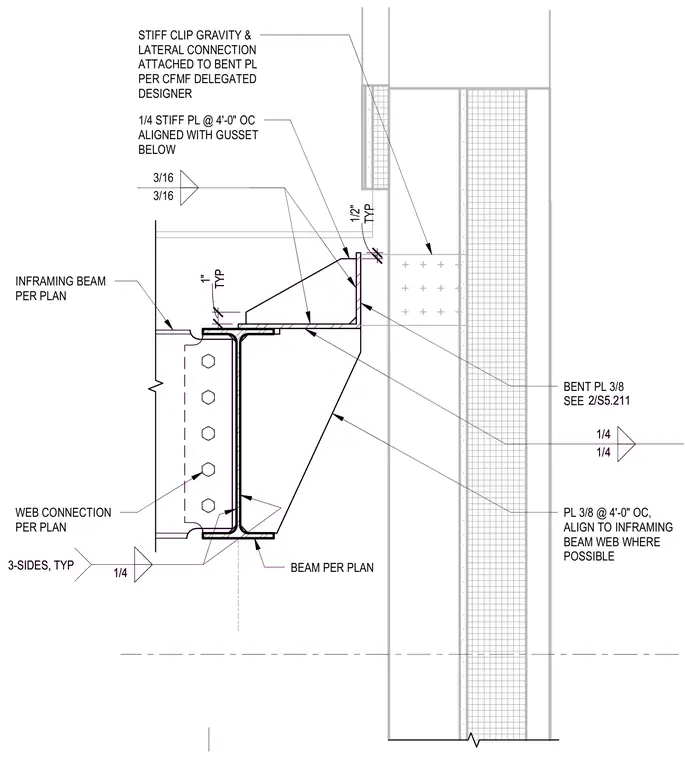

A typical cold-formed metal framing gravity and lateral support connection occurs at the roof edge. An inframing beam connects to the supporting structure with a web connection per plan, welded with a quarter-inch fillet weld on three sides typically. A three-eighths-inch bent plate aligns with the gusset plate below and is welded with three-sixteenths-inch fillet welds. Three-eighths-inch stiffener plates spaced at four feet on center align with the inframing beam web where possible. A stiff clip gravity and lateral connection attaches to the bent plate per the cold-formed metal framing delegated designer.
PL 3/8 @ 4'-0" OC, ALIGN TO INFRAMING BEAM WEB WHERE POSSIBLE 1/4 1/4 STIFF CLIP GRAVITY & LATERAL CONNECTION ATTACHED TO BENT PL PER CFMF DELEGATED DESIGNER BEAM PER PLAN BENT PL 3/8 SEE 1/4 STIFF PL @ 4'-0" OC ALIGNED WITH GUSSET BELOW TYP 1/2" TYP 1" 3/16 3/16 2/S5.211 WEB CONNECTION PER PLAN 1/4 3-SIDES, TYP INFRAMING BEAM PER PLAN PL 3/8 @ 4'-0" OC, ALIGN TO INFRAMING BEAM WEB WHERE POSSIBLE 1/4 1/4 STIFF CLIP GRAVITY & LATERAL CONNECTION ATTACHED TO BENT PL PER CFMF DELEGATED DESIGNER BEAM PER PLAN BENT PL 3/8 SEE 1/4 STIFF PL @ 4'-0" OC ALIGNED WITH GUSSET BELOW TYP 1/2" TYP 1" 3/16 3/16 2/S5.211 WEB CONNECTION PER PLAN 1/4 3-SIDES, TYP INFRAMING BEAM PER PLAN
