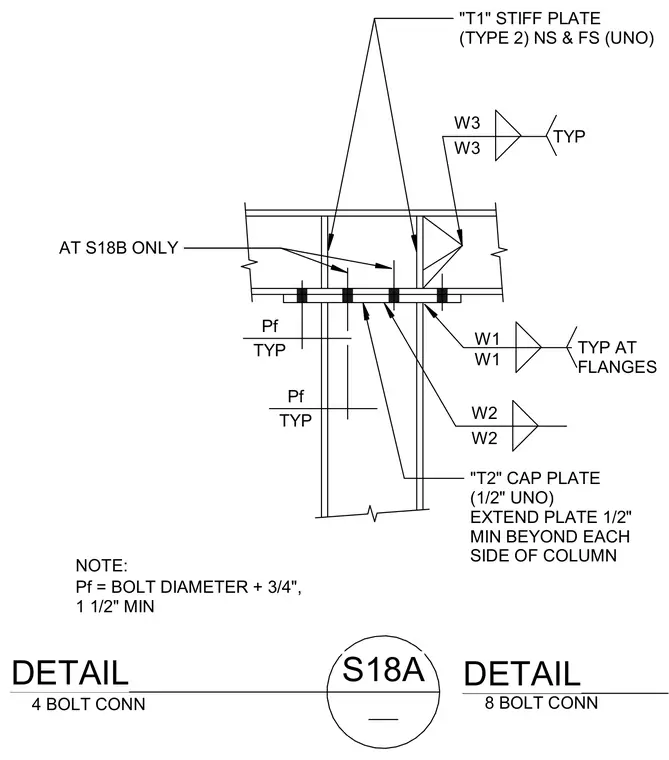

A structural steel column features a T2 cap plate set at one half inch thickness unless noted otherwise and extending one half inch minimum beyond each side of the column. T1 stiffener plates are welded near side and far side to the supported framing member flanges using specified fillet welds. Bolt spacing Pf equals bolt diameter plus three quarters of an inch with a one and one half inch minimum. Additional plate extensions are provided at specific detail locations.
TYP AT FLANGES W1 W1 W2 W2 W3 W3 TYP DETAIL DETAIL S18A 8 BOLT CONN 4 BOLT CONN Pf TYP Pf = BOLT DIAMETER + 3/4", 1 1/2" MIN Pf TYP "T2" CAP PLATE (1/2" UNO) EXTEND PLATE 1/2" MIN BEYOND EACH SIDE OF COLUMN AT S18B ONLY "T1" STIFF PLATE (TYPE 2) NS & FS (UNO) NOTE:
