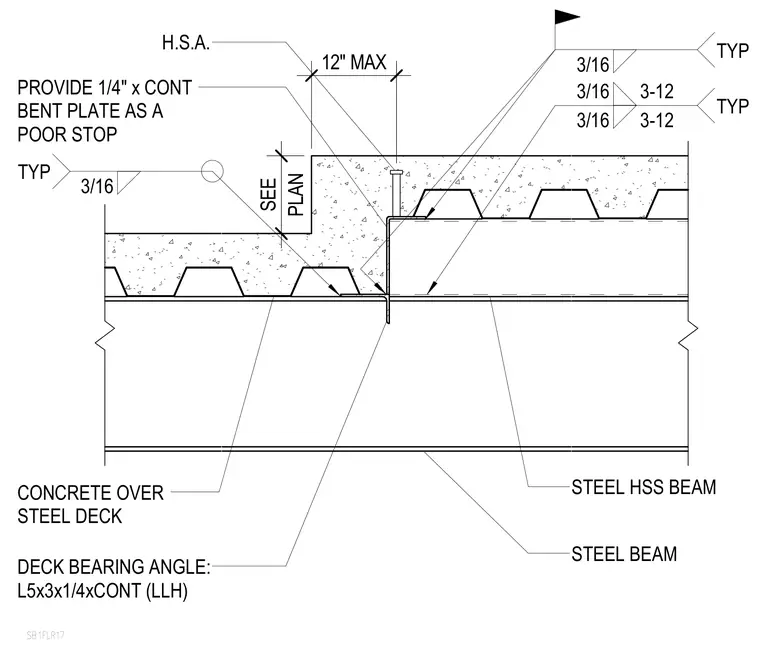

A structural steel beam and hollow structural section beam support a concrete slab over metal deck featuring a height transition. A continuous deck bearing angle profile L5x3x1/4 is welded to support the stepped deck layout with three-sixteenth-inch fillet welds typically spaced at twelve inches. A quarter-inch continuous bent plate functions as a pour stop at the slab edge condition. Shear studs are anchored through the deck into the underlying steel framing members.
SB1FLR17 PROVIDE 1/4" x CONT BENT PLATE AS A POOR STOP STEEL BEAM H.S.A. CONCRETE OVER STEEL DECK 3/16 TYP STEEL HSS BEAM 3/16 3-12 3/16 3-12 TYP 12" MAX PLAN SEE DECK BEARING ANGLE: L5x3x1/4xCONT (LLH) 3/16 TYP
