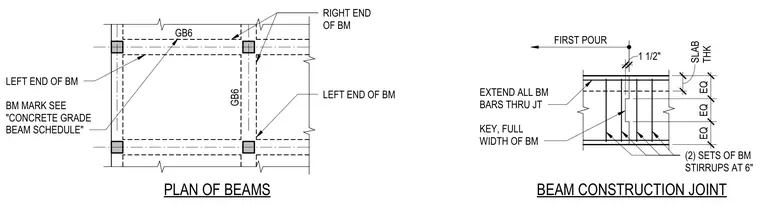

Concrete beam construction joint detailing the transition between sequential concrete pours. All beam reinforcement bars extend continuously through the joint. A full-width key is formed at the joint interface for shear transfer between pours. Two sets of beam stirrups are spaced at six inches on center adjacent to the joint location.
EQ EQ EQ 6" KEY, FULL WIDTH OF BM (2) SETS OF BM STIRRUPS AT 6" EXTEND ALL BM BARS THRU JT FIRST POUR BEAM CONSTRUCTION JOINT 1 1/2" PLAN OF BEAMS RIGHT END OF BM LEFT END OF BM LEFT END OF BM GB6 GB6 BM MARK SEE "CONCRETE GRADE BEAM SCHEDULE" SLAB THK
