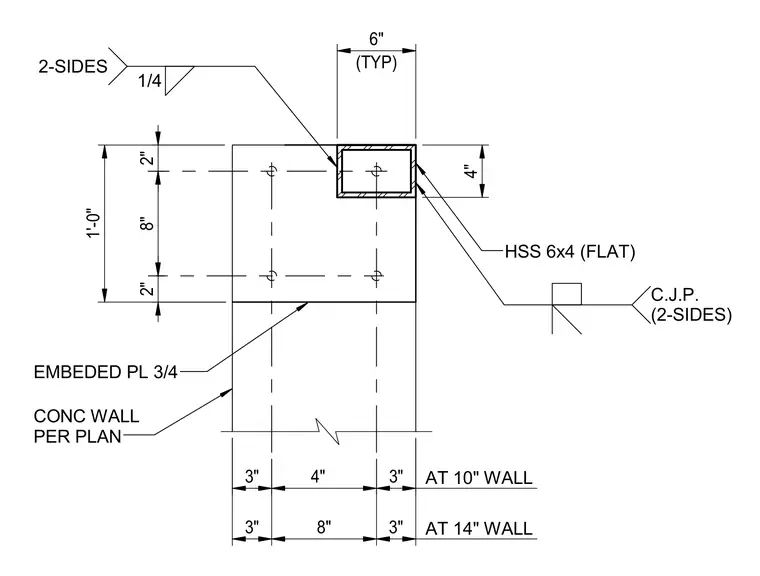

An HSS 6x4 hollow structural section is anchored to a concrete wall via a three-quarter-inch embedded steel plate. The structural steel tube connects to the embed plate using a complete joint penetration weld on two sides, supplemented by a quarter-inch fillet weld on two sides. Dimensions detail specific edge distances and fastener layouts varying for ten-inch and fourteen-inch concrete wall thicknesses.
HSS 6x4 (FLAT) CONC WALL PER PLAN EMBEDED PL 3/4 1'-0" 2" 8" 2" 4" 1/4 2-SIDES C.J.P. (2-SIDES) 3" 4" 3" 3" 8" 3" AT 10" WALL AT 14" WALL (TYP) 6"
