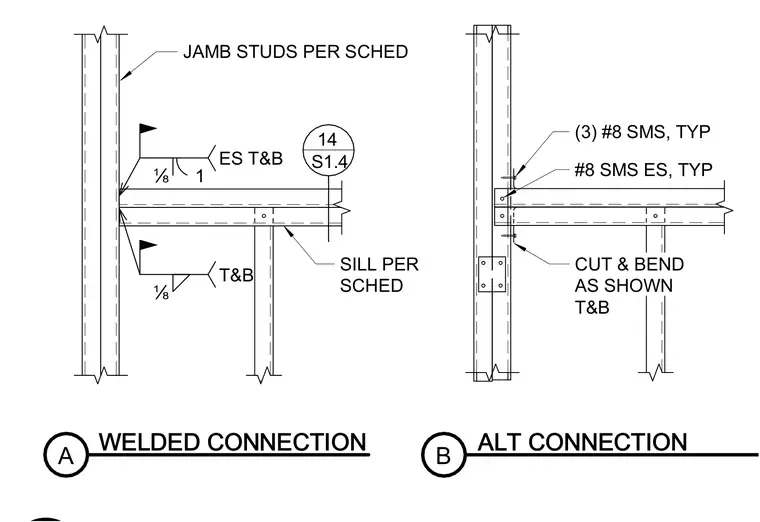

Jamb studs sized per schedule connect to the sill member using either a welded or screw-fastened configuration. The welded connection utilizes one-eighth inch fillet welds top and bottom, with field-weld flags indicated at the intersections. The alternate connection uses number eight sheet metal screws each side, augmented by cut and bend tabs top and bottom as shown.
ALT CONNECTION #8 SMS ES, TYP (3) #8 SMS, TYP CUT & BEND AS SHOWN T&B JAMB STUDS PER SCHED É 1 ES T&B É T&B 14 S1.4 ___________ WELDED CONNECTION A B SILL PER SCHED
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
