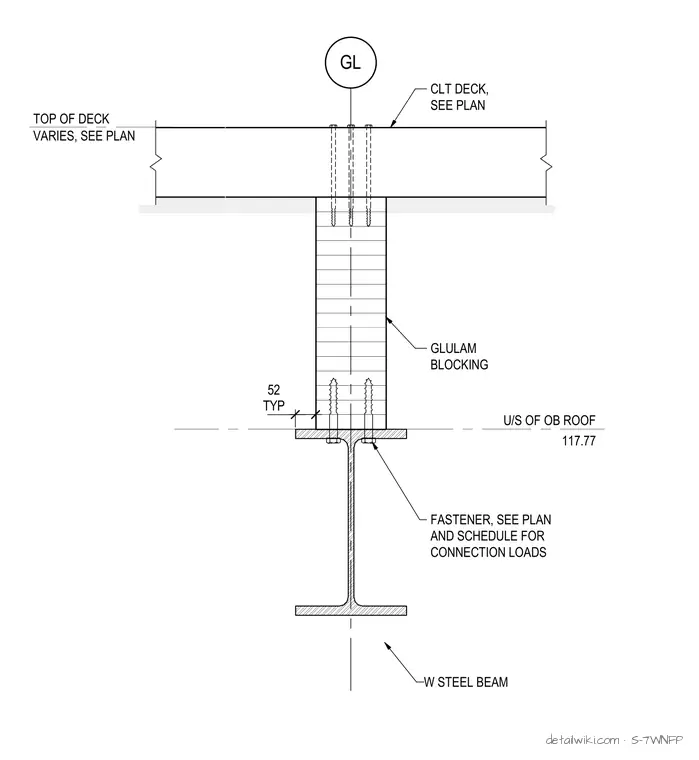

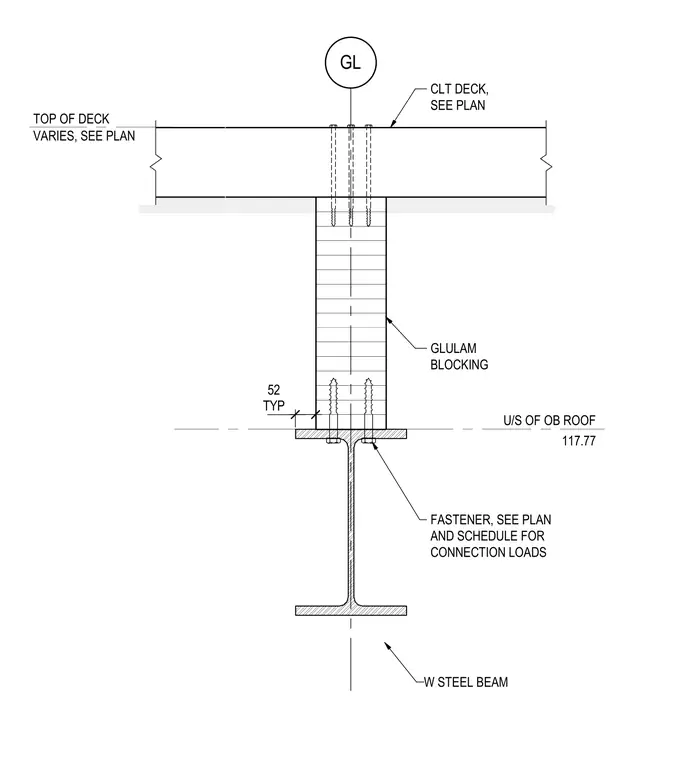

S-7WNFP — Between Sloped Deck And Steel Beams

Structural · S-7WNFP

Between Sloped Deck And Steel Beams

Units: metric
Sheet: S-OB-5.51
Discipline: Structural

Materials

Steel Timber / Wood

Elements

Beams Connections / Plates Decks Roofs

Connections

Deck Attachment Timber / Mass-Timber Connection

Text on the drawing

U/S OF OB ROOF 117.77 W STEEL BEAM GL GLULAM BLOCKING FASTENER, SEE PLAN AND SCHEDULE FOR CONNECTION LOADS CLT DECK, SEE PLAN TYP 52 TOP OF DECK VARIES, SEE PLAN
