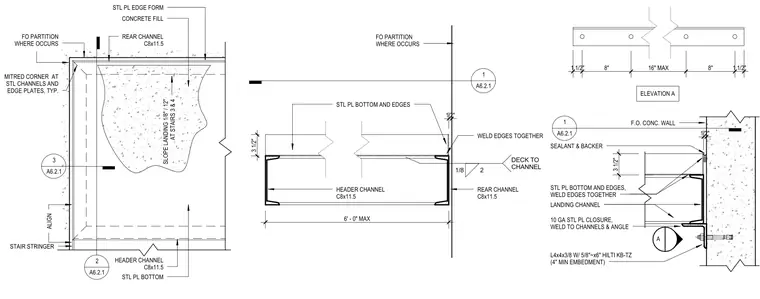

Edge framing and connection assembly for a concrete-filled stair landing bounded by C8x11.5 steel header and rear channels with a steel plate edge form and bottom plate, featuring mitred corners at the steel channels and edge plates. A 10-gauge steel plate closure is welded to the channels and angle. The structural steel framing is anchored to the face of the concrete wall using an L4x4x3/8 angle secured with 5/8-inch by 6-inch Hilti KB-TZ wedge anchors providing a 4-inch minimum embedment. Joint sealant and backer rod are provided at the wall interface, and a 1/8-inch per foot slope is specified for the landing concrete fill.
STL PL EDGE FORM CONCRETE FILL REAR CHANNEL C8x11.5 STL PL BOTTOM HEADER CHANNEL C8x11.5 2 A6.2.1 SLOPE LANDING 1/8" / 12" AT STAIRS 3 & 4 3 A6.2.1 FO PARTITION WHERE OCCURS STAIR STRINGER MITRED CORNER AT STL CHANNELS AND EDGE PLATES, TYP. ALIGN FO PARTITION WHERE OCCURS STL PL BOTTOM AND EDGES HEADER CHANNEL C8x11.5 REAR CHANNEL C8x11.5 1/8 2 DECK TO CHANNEL 6' - 0" MAX 1 A6.2.1 3 1/2" 1/2" WELD EDGES TOGETHER 1 1/2" 8" 16" MAX 8" 1 1/2" F.O. CONC. WALL 3 1/2" L4x4x3/8 W/ 5/8"~x6" HILTI KB-TZ (4" MIN EMBEDMENT) LANDING CHANNEL 1/2" A ELEVATION A 1 A6.2.1 SEALANT & BACKER 10 GA STL PL CLOSURE, WELD TO CHANNELS & ANGLE STL PL BOTTOM AND EDGES, WELD EDGES TOGETHER
