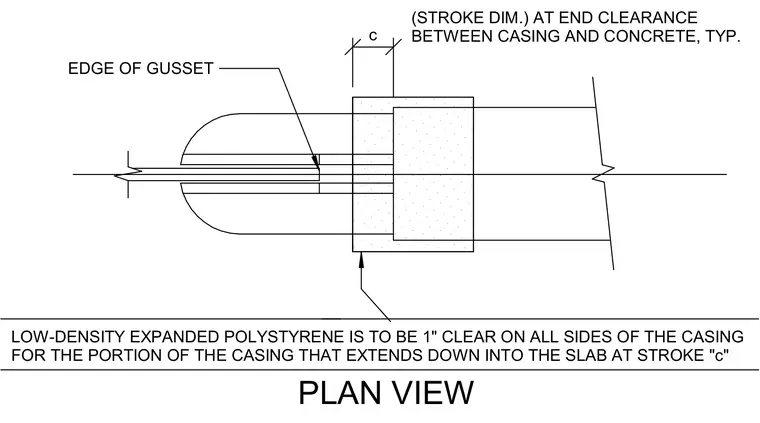

Low-density expanded polystyrene requires a one-inch clear space on all sides of the casing for the portion extending down into the concrete slab at stroke "c". The plan view indicates the end clearance between the casing and concrete typical detail, referencing the edge of the gusset.
LOW-DENSITY EXPANDED POLYSTYRENE IS TO BE 1" CLEAR ON ALL SIDES OF THE CASING FOR THE PORTION OF THE CASING THAT EXTENDS DOWN INTO THE SLAB AT STROKE "c" PLAN VIEW c (STROKE DIM.) AT END CLEARANCE BETWEEN CASING AND CONCRETE, TYP. EDGE OF GUSSET
