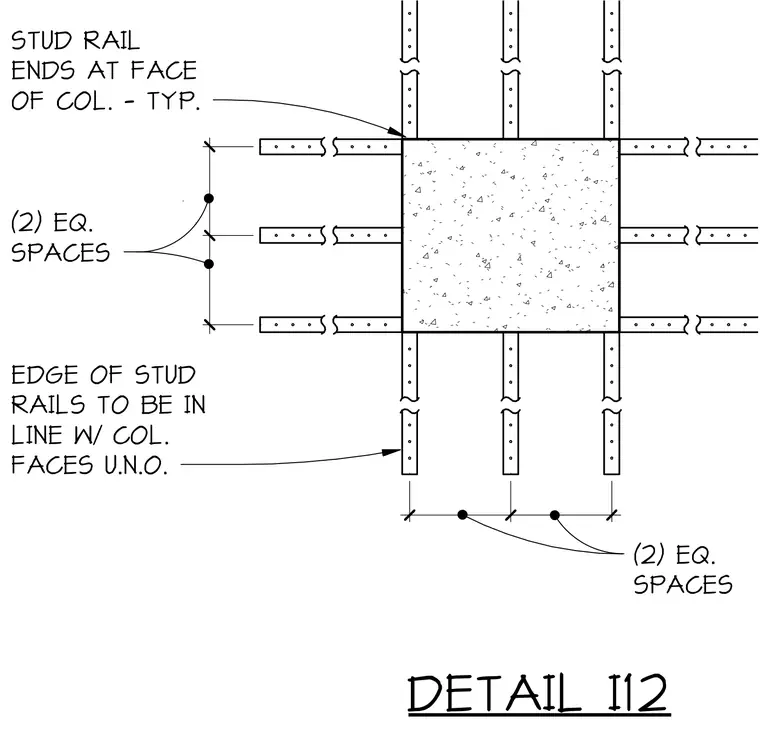

Stud rail ends align with the face of the concrete column typically unless noted otherwise. Two equal spaces are dimensioned across the stud rail layout around the column.
DETAIL I12 STUD RAIL ENDS AT FACE OF COL. - TYP. EDGE OF STUD RAILS TO BE IN LINE W/ COL. FACES U.N.O. (2) EQ. SPACES (2) EQ. SPACES 7 3 /8 " 7 3 /8 " 8 3/ 8 " 8 3/ 8 "
