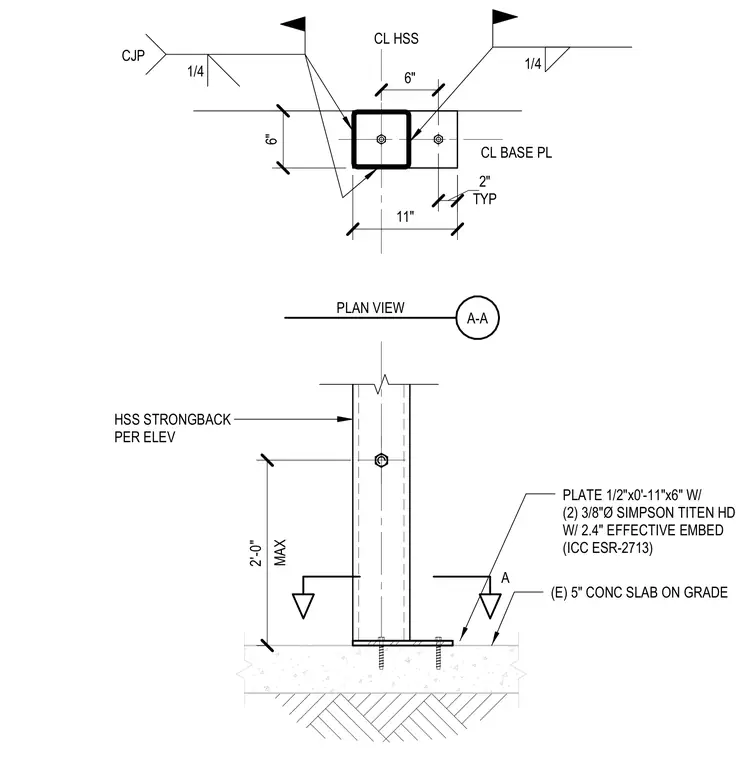

An HSS strongback bears on a base plate measuring one-half inch by eleven inches by six inches, secured to an existing five-inch concrete slab-on-grade using two three-eighths-inch diameter Simpson Titen HD screw anchors with a two-point-four-inch effective embedment per ICC ESR-2713. The base plate connects to the HSS member with quarter-inch fillet welds and complete joint penetration welds as indicated. The strongback extends upward from the slab with a maximum two-foot spacing to the intermediate attachment per the elevation.
A-A PLAN VIEW PLATE 1/2"x0'-11"x6" W/ (2) 3/8"Ø SIMPSON TITEN HD W/ 2.4" EFFECTIVE EMBED (ICC ESR-2713) (E) 5" CONC SLAB ON GRADE HSS STRONGBACK PER ELEV A 6" 11" TYP 2" 1/4 CL BASE PL CL HSS MAX 2'-0" 1/4 CJP 6"
