Structural · S-7VQ3Q

BRBF Double Brace Beam Column Connection

Materials

Steel Metal (misc.)

Elements

Columns Beams Bracing Connections / Plates

Connections

Moment Connection Braced Frame Connection Gusset Plate Bracing Connection Welded Connection Bolted Connection

About this detail

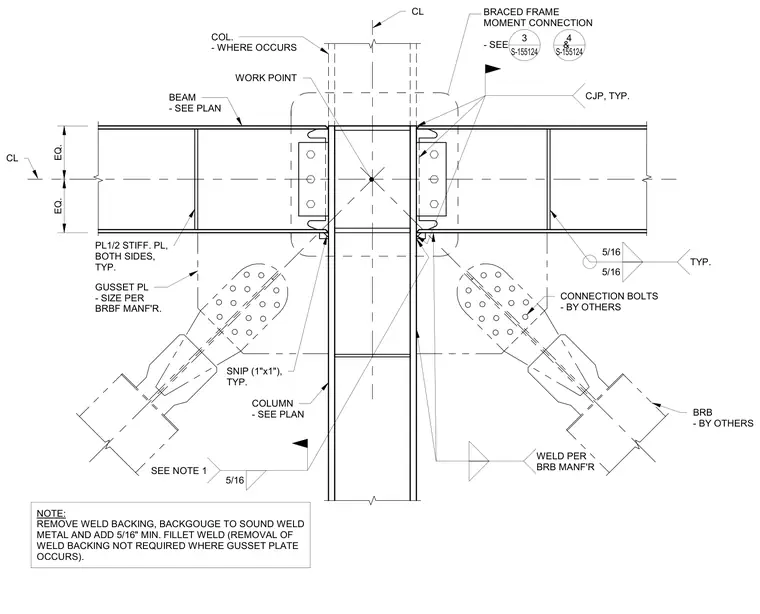

This structural detail shows a buckling restrained braced frame double brace connection at a steel beam and column intersection. The assembly features a central steel column flanked by steel beams sized per plan, with one-half inch thick stiffener plates welded to both sides of the beams. Gusset plates sized per the manufacturer are connected to buckling restrained braces using connection bolts provided by others. Complete joint penetration welds and five-sixteenth inch fillet welds are specified throughout the connection, with standard snips at plate corners. A specific note requires the removal of weld backing, backgouging to sound weld metal, and the addition of a five-sixteenth inch minimum fillet weld where indicated.
