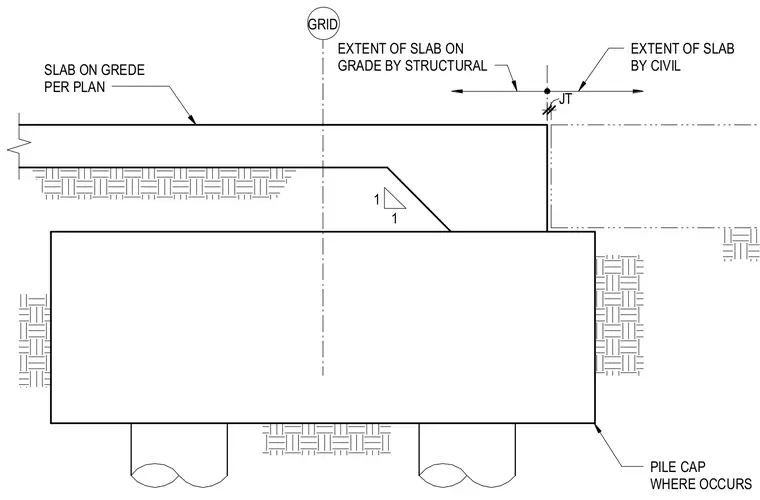

A reinforced concrete slab on grade rests directly upon a structural pile cap where conditions require deep foundation support. A joint separates the structural slab on grade from the adjacent slab scope managed by civil engineering. The pile cap itself ties into structural piles below grade as indicated per plan.
PILE CAP WHERE OCCURS SLAB ON GREDE PER PLAN EXTENT OF SLAB BY CIVIL EXTENT OF SLAB ON GRADE BY STRUCTURAL JT GRID 1 1
