Steel Beam to Frame Beam Shear Tab Connection

Materials

Steel

Elements

Beams Connections / Plates

Connections

Shear Tab / Single Plate Bolted Connection Expansion / Slip Connection

About this detail

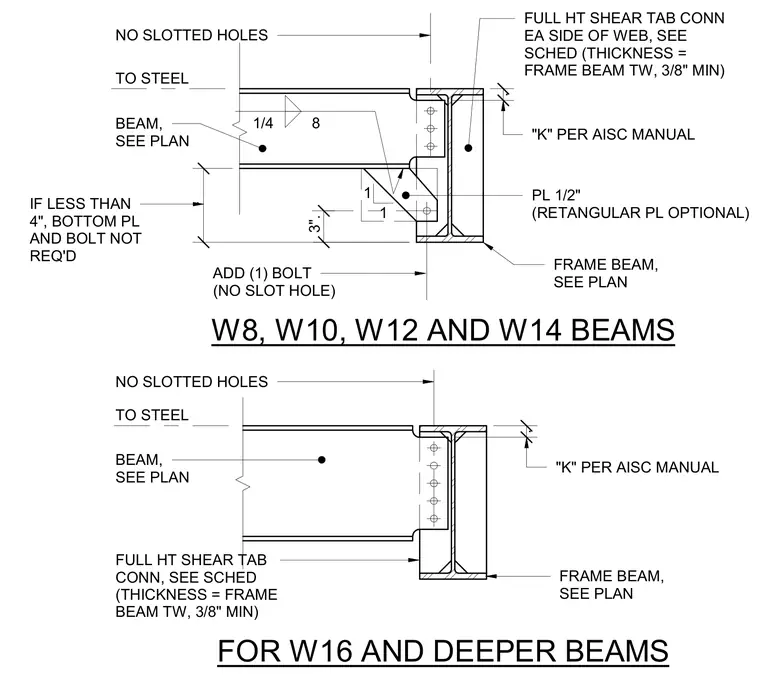

A beam-to-frame beam connection utilizes a full-height shear tab welded to each side of the web, with thickness matched to the frame beam web or three-eighths inch minimum. The incoming beam framing into the support is detailed with unslotted holes. For W8, W10, W12, and W14 beams framing into W16 and deeper beams, an optional rectangular half-inch plate is provided below with an additional unslotted bolt when dimensions permit. Clearances adhere to AISC manual "K" dimensions. Standard framing configurations apply as indicated per plan.
