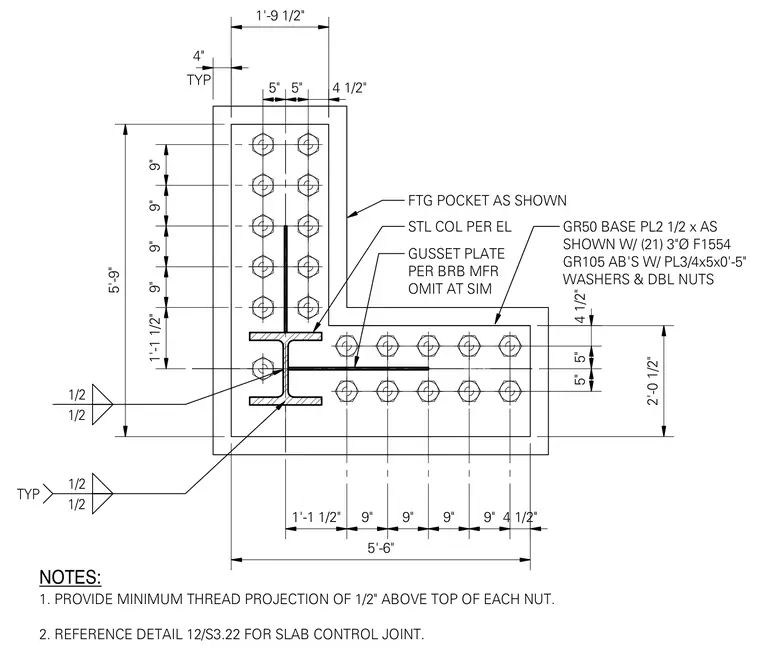

A heavy steel column baseplate and gusset plate assembly is anchored within a footing pocket. The structural steel column is welded with half-inch fillet welds and receives a gusset plate per the buckling-restrained brace manufacturer specifications. A Grade 50 two-and-a-half-inch base plate is secured with twenty-one three-inch diameter ASTM F1554 Grade 105 anchor bolts, complete with three-quarter-inch by five-inch by five-inch washers and double nuts. A minimum thread projection of half an inch is required above the top of each nut. Slab control joints are referenced separately.
GUSSET PLATE PER BRB MFR OMIT AT SIM GR50 BASE PL2 1/2 x AS SHOWN W/ (21) 3"Ø F1554 GR105 AB'S W/ PL3/4x5x0'-5" WASHERS & DBL NUTS STL COL PER EL FTG POCKET AS SHOWN 1/2 1/2 1/2 1/2 TYP NOTES: 1. PROVIDE MINIMUM THREAD PROJECTION OF 1/2" ABOVE TOP OF EACH NUT. 2. REFERENCE DETAIL 12/S3.22 FOR SLAB CONTROL JOINT. 5'-9" 1'-9 1/2" 2'-0 1/2" 5'-6" 1'-1 1/2" 9" 9" 9" 9" 4 1/2" 4 1/2" 5" 5" 5" 5" 4 1/2" TYP 4" 1'-1 1/2" 9" 9" 9" 9"
