A steel column connects to a concrete foundation through a structural steel base plate secured by four ASTM F1554 Grade 36 anchor rods with heavy hex nuts or rod heads. A minimum one and a half inches of nonshrink grout is placed beneath the plate over the top of the finished floor or footing. Fillet welds attach the column flanges and web to the base plate according to specified sizes. A base plate schedule correlates column sizes like wide flange and hollow structural sections with specific base plate dimensions, thicknesses, and detail references.

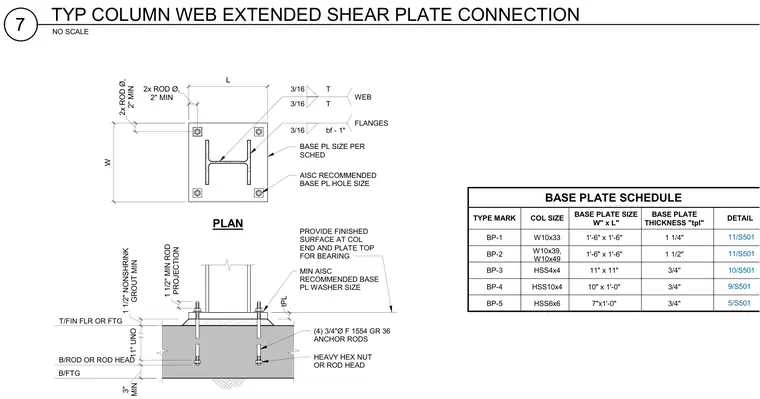

T/FIN FLR OR FTG B/ROD OR ROD HEAD B/FTG 3/16 T 3/16 T WEB 3/16 bf - 1" FLANGES BASE PL SIZE PER SCHED AISC RECOMMENDED BASE PL HOLE SIZE MIN 3" (4) 3/4"Ø F 1554 GR 36 ANCHOR RODS HEAVY HEX NUT OR ROD HEAD PLAN MIN AISC RECOMMENDED BASE PL WASHER SIZE PROVIDE FINISHED SURFACE AT COL END AND PLATE TOP FOR BEARING L W 2" MIN 2x ROD Ø, 2" MIN 2x ROD Ø, tPL PROJECTION 1 1/2" MIN ROD 11" UNO GROUT MIN 1 1/2" NONSHRINK BASE PLATE SCHEDULE BASE PLATE SIZE W" x L" BASE PLATE THICKNESS "tpl" DETAIL 1'-6" x 1'-6" 1 1/4" 1'-6" x 1'-6" 1 1/2" 11" x 11" 3/4" 7"x1'-0" 3/4" TYPE MARK BP-1 BP-2 BP-3 BP-5 COL SIZE W10x33 W10x39, W10x49 HSS4x4 HSS6x6 11/S501 11/S501 10/S501 5/S501 BP-4 HSS10x4 10" x 1'-0" 3/4" 9/S501 NO SCALE 7 TYP COLUMN WEB EXTENDED SHEAR PLATE CONNECTION
