Structural · S-7TYJG

Special Moment Frame Weld Access Hole Geometry and Details

Materials

Connections

Shear Tab / Single Plate Welded Connection

About this detail

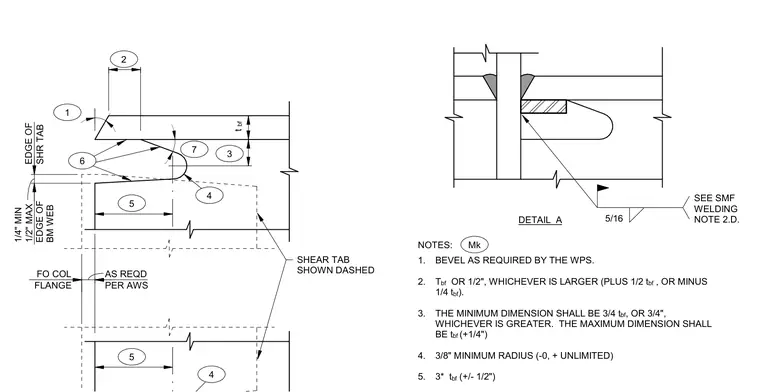

Geometric requirements for a weld access hole in a special moment frame beam-to-column connection. The beam flange features a specific bevel and a radiused access hole sized proportionally to the beam flange thickness, with dimensions governed by notes for tolerances and clearance. A dashed shear tab aligns with the beam web, maintaining a specified offset from the edge of the beam web. The adjacent detail presents the complete welded joint assembly with a backing bar and a five-sixteenths inch fillet weld executed per special moment frame welding notes. The flange-to-column connection includes specified bevels and transitions to ensure proper stress distribution during seismic loading.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
