Structural · S-7TXHG

Moment Connection Beam to Column with Continuity Plates

Connections

About this detail

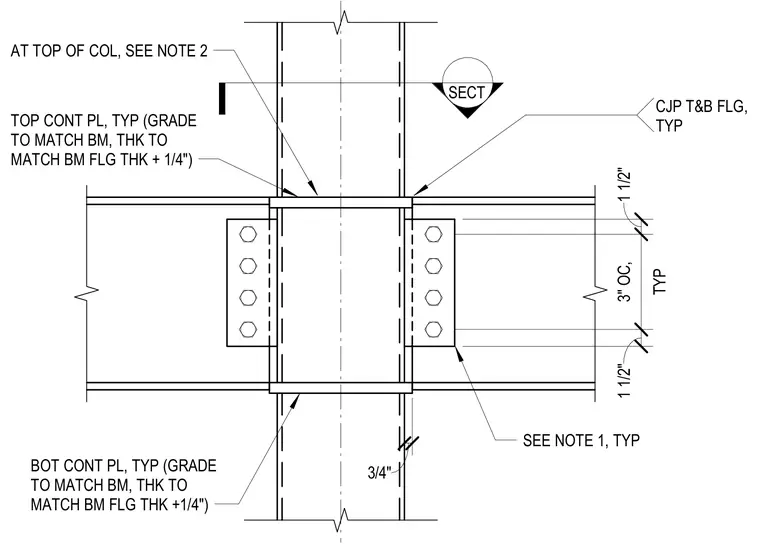

This connection details structural steel beams framing into a wide-flange column with top and bottom continuity plates welded via complete joint penetration welds at the top and bottom flanges. The continuity plates match the steel grade of the beams and have a thickness equal to the beam flange thickness plus one-quarter inch. Shear tabs are bolted to the beam webs with four vertical bolts spaced at three inches on center, set one and one-half inches from the outer edges.
