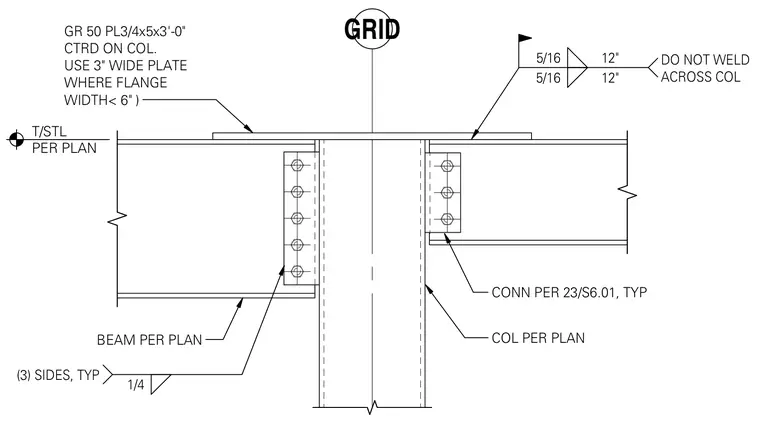

A Grade 50 steel plate measuring 3/4 inch by 5 inches by 3 feet 0 inches is centered on the column line across the top flanges of the framing members. The plate is welded with five-sixteenths inch fillet welds on twelve-inch intervals, left unwelded across the column face. Beams frame into the column using shear connections specified per plan, welded with one-quarter inch fillets on three sides typically. A three-inch wide plate is substituted when the supporting beam flange width is less than six inches. Top of steel elevations and beam sizes are determined per plan.
BEAM PER PLAN CONN PER 23/S6.01, TYP GRID COL PER PLAN 1/4 (3) SIDES, TYP 5/16 12" 5/16 12" DO NOT WELD ACROSS COL GR 50 PL3/4x5x3'-0" CTRD ON COL. USE 3" WIDE PLATE WHERE FLANGE WIDTH< 6" ) T/STL PER PLAN
