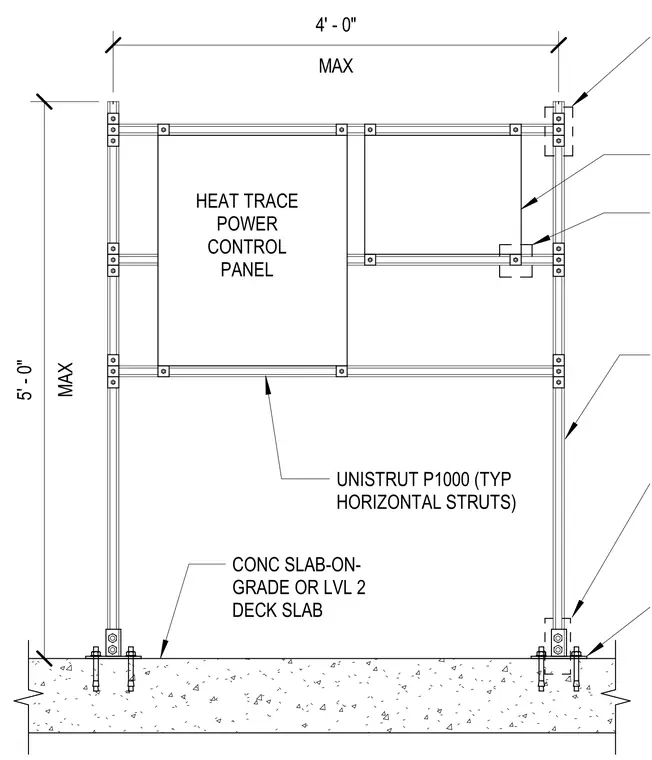

This assembly consists of a Unistrut P1000 metal framing system used to support heat trace power control panels and user interface panels. The vertical and horizontal struts are anchored to a concrete slab-on-grade or a level two deck slab. The frame is designed for a maximum width of four feet and a maximum height of five feet. Slab reinforcement is omitted for clarity, and panel locations should be verified against mechanical and electrical drawings.
Text on the drawing
UNISTRUT P1000 (TYP HORIZONTAL STRUTS) HEAT TRACE POWER CONTROL PANEL MAX 4' - 0" MAX 5' - 0" TYPICAL HEAT TRACE POWER CONTROL PANEL AND USER INTERFACE PANEL SUPPORT ON CONCRETE CONC SLAB-ON- GRADE OR LVL 2 DECK SLAB NOTE: 1. SLAB REINFORCEMENT NOT SHOWN FOR CLARITY. 2. FOR LOCATION OF BMS PANELS, RE: MECH AND ELEC DRAWINGS.
