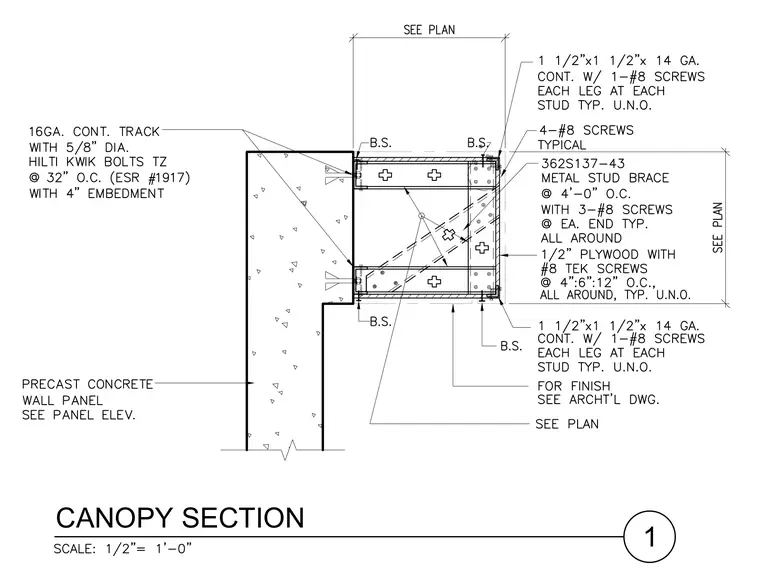

A sixteen-gauge continuous track anchors to a precast concrete wall panel using five-eighths-inch diameter Hilty Kwik Bolt TZ expansion anchors at thirty-two inches on center with four inches of embedment. The canopy framing consists of 362S137-43 metal stud braces spaced at four feet on center, fastened with three number-eight screws at each end. One-half-inch plywood is secured to the framing using number-eight Tek screws spaced at four inches, six inches, and twelve inches on center. Continuous fourteen-gauge angles measuring one and one-half by one and one-half inches attach with one number-eight screw per leg at each stud. Finish materials are specified on the architectural drawings.
