Structural · S-7TVG8

Reinforcement Detailing and Hook Dimensions for Ties and Stirrups

Elements

About this detail

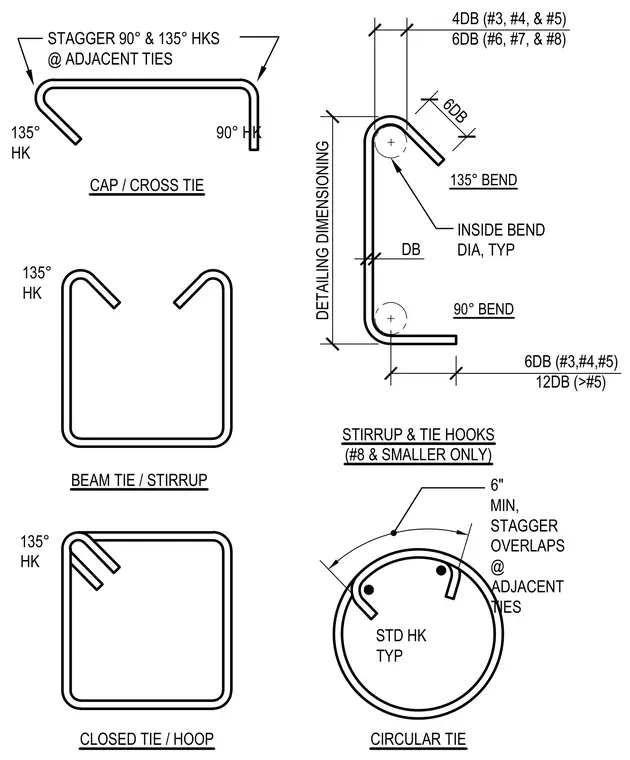

Standard reinforcing bar hook configurations, bend diameters, and extension lengths are detailed for structural concrete stirrups and ties. Standard hooks feature 90-degree and 135-degree bends with extension lengths specified as four bar diameters for sizes #3 through #5, and six bar diameters for sizes #6 through #8. Closed ties, beam stirrups, cross ties, and circular ties show alternating ninety-degree and one-hundred-thirty-five-degree hook placements. Overlaps at adjacent circular ties are staggered with a six-inch minimum spacing.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
