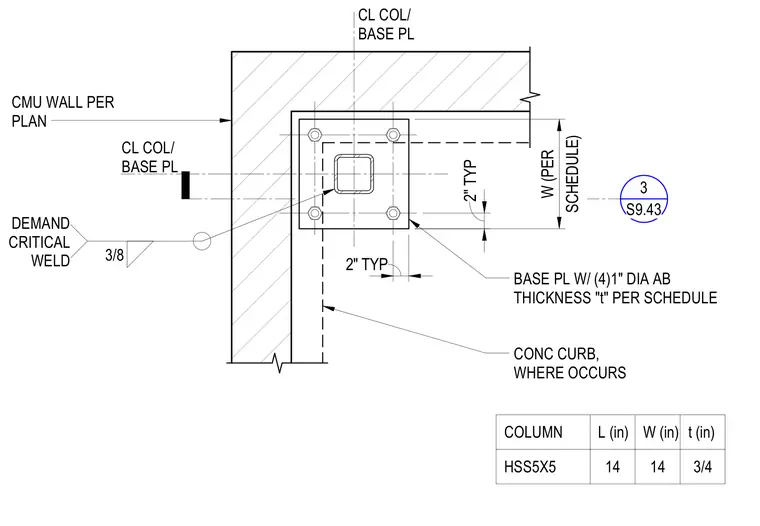

An HSS5x5 structural steel column is welded to a square base plate with a three-eighths-inch demand critical weld. The plate is secured with four one-inch diameter anchor bolts and features a thickness sized per schedule adjacent to a concrete masonry unit wall. A concrete curb occurs at the perimeter as indicated.
BASE PL W/ (4)1" DIA AB THICKNESS "t" PER SCHEDULE 3/8 DEMAND CRITICAL WELD CMU WALL PER PLAN COLUMN HSS5X5 L (in) W (in) t (in) 14 14 3/4 CONC CURB, WHERE OCCURS 3 S9.43 CL COL/ BASE PL CL COL/ BASE PL 2" TYP 2" TYP SCHEDULE) W (PER
