S-7TK2B — Vertical Construction Joint in Shotcrete

Structural · S-7TK2B

Vertical Construction Joint in Shotcrete

Units: imperial
Sheet: S5.01
Discipline: Structural

Materials

Concrete Reinforced Concrete

Elements

Expansion / Control Joints Reinforcing Retaining Walls Stem Walls Walls Waterproofing / Flashing

Text on the drawing

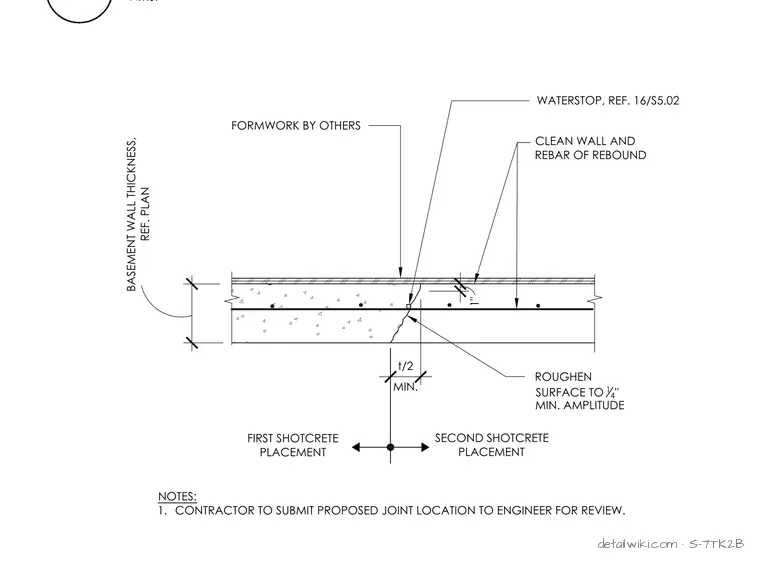

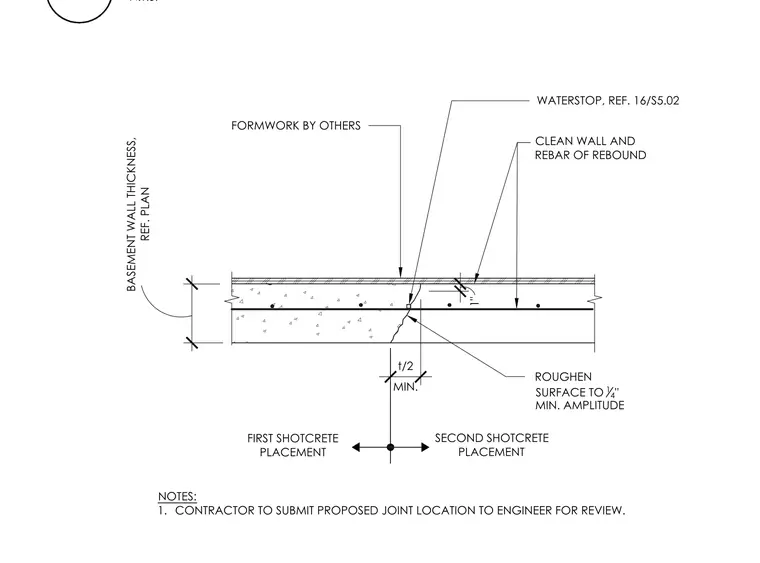

19 N.T.S. ROUGHEN SURFACE TO 1 4 " MIN. AMPLITUDE CLEAN WALL AND REBAR OF REBOUND 1" t/2 MIN. BASEMENT WALL THICKNESS, REF. PLAN FIRST SHOTCRETE PLACEMENT SECOND SHOTCRETE PLACEMENT NOTES: 1. CONTRACTOR TO SUBMIT PROPOSED JOINT LOCATION TO ENGINEER FOR REVIEW. FORMWORK BY OTHERS WATERSTOP, REF. 16/S5.02
