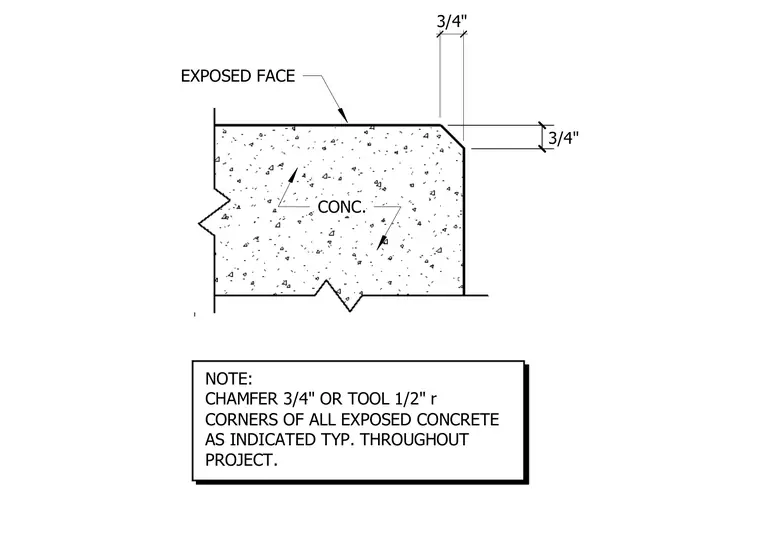

Exposed concrete corners require a three-quarter-inch chamfer or a one-half-inch rounded edge tool applied typically throughout the project. The detail specifies a three-quarter-inch by three-quarter-inch chamfer dimension along the exposed face of the concrete member.
CONC. NOTE: CHAMFER 3/4" OR TOOL 1/2" r CORNERS OF ALL EXPOSED CONCRETE AS INDICATED TYP. THROUGHOUT PROJECT. EXPOSED FACE 3/4" 3/4"
