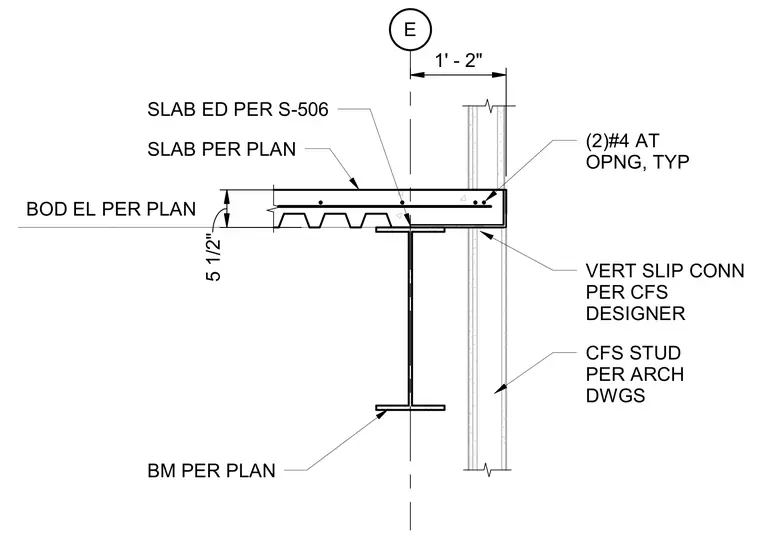

A vertical slip connection per the cold-formed steel designer coordinates movement between the cold-formed steel stud and the structural slab. The concrete slab on metal deck bears on a structural steel beam sized per plan, with the slab edge detailed per sheet S-506 at an elevation per plan. Two number four reinforcing bars are placed at the opening typically. The cold-formed steel stud framing follows the architectural drawings and sits at a specified offset from the grid line.
E 1' - 2" 5 1/2" BOD EL PER PLAN 116' - 2 1/2" VERT SLIP CONN PER CFS DESIGNER CFS STUD PER ARCH DWGS BM PER PLAN SLAB PER PLAN SLAB ED PER S-506 (2)#4 AT OPNG, TYP
