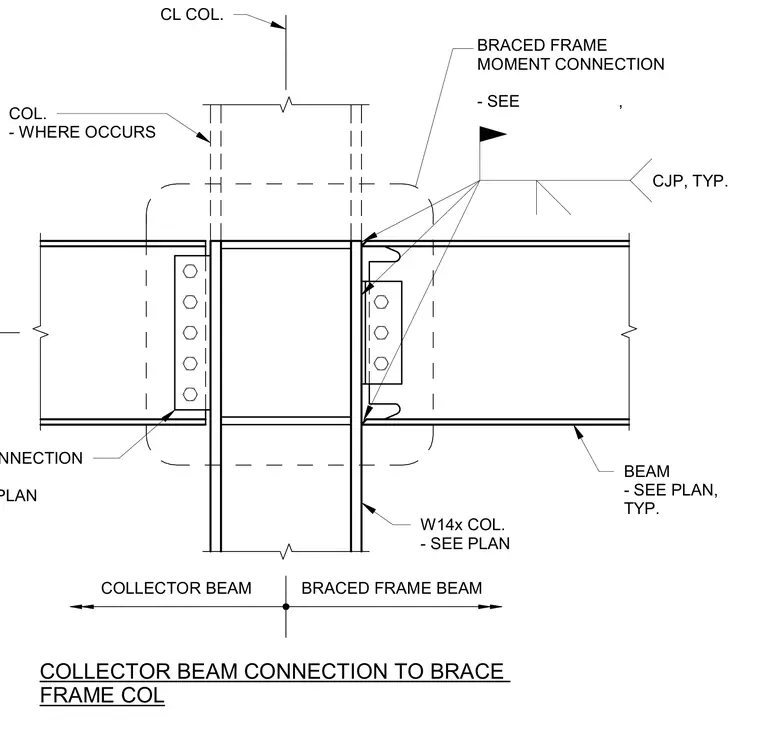

A W14 column supports a collector beam and a braced frame beam meeting at a moment connection. The beams connect to the column flange using typical complete joint penetration welds and bolted shear tabs sized per plan. Additional column plates occur where required by the frame geometry. Centerlines and grid dimensions align the framing components.
W14x COL. - SEE PLAN BRACED FRAME MOMENT CONNECTION - SEE , BEAM - SEE PLAN, TYP. CJP, TYP. CL COL. COL. - WHERE OCCURS COLLECTOR CONNECTION & PLAN COLLECTOR BEAM BRACED FRAME BEAM COLLECTOR BEAM CONNECTION TO BRACE FRAME COL
