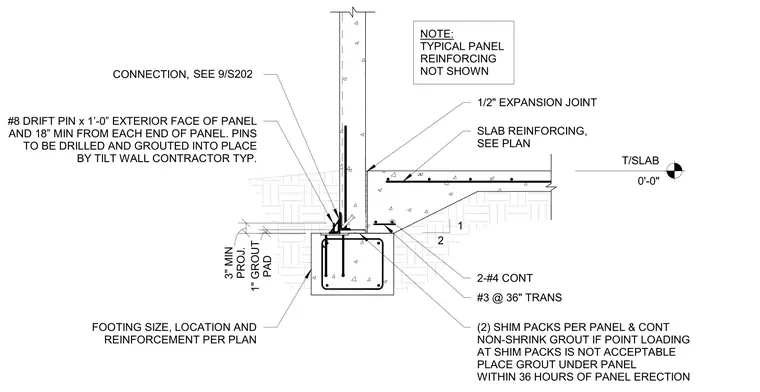

The tilt-up concrete wall panel rests on a concrete footing via two shim packs per panel. A number eight drift pin, one foot long, is drilled and grouted into the footing at the exterior face of the panel, spaced eighteen inches minimum from each end. A one-inch grout pad is provided beneath the panel, with continuous non-shrink grout required within thirty-six hours of panel erection if point loading at the shim packs is unacceptable. A half-inch expansion joint separates the panel from the adjacent floor slab, which is reinforced as specified on the structural plans. The footing contains two continuous number four longitudinal bars and number three transverse bars spaced at thirty-six inches on center.
Text on the drawing
DETAIL BOOK REF. SHEET: S1.15B DATE: 03/15/2024 FOOTING SIZE, LOCATION AND REINFORCEMENT PER PLAN NOTE: TYPICAL PANEL REINFORCING NOT SHOWN T/SLAB 0'-0" #3 @ 36" TRANS 2-#4 CONT 1 2 (2) SHIM PACKS PER PANEL & CONT NON-SHRINK GROUT IF POINT LOADING AT SHIM PACKS IS NOT ACCEPTABLE PLACE GROUT UNDER PANEL WITHIN 36 HOURS OF PANEL ERECTION PAD 1" GROUT PROJ. 3" MIN 1/2" EXPANSION JOINT SLAB REINFORCING, SEE PLAN #8 DRIFT PIN x 1’-0” EXTERIOR FACE OF PANEL AND 18” MIN FROM EACH END OF PANEL. PINS TO BE DRILLED AND GROUTED INTO PLACE BY TILT WALL CONTRACTOR TYP. CONNECTION, SEE 9/S202
