Column Base Plate and Foundation Footing Detail

Materials

Concrete Steel Masonry / CMU

Elements

Columns Floors / Slabs Foundations / Footings Site / Paving Anchors / Embeds Connections / Plates

Connections

Braced Frame Connection Base Plate / Anchorage

About this detail

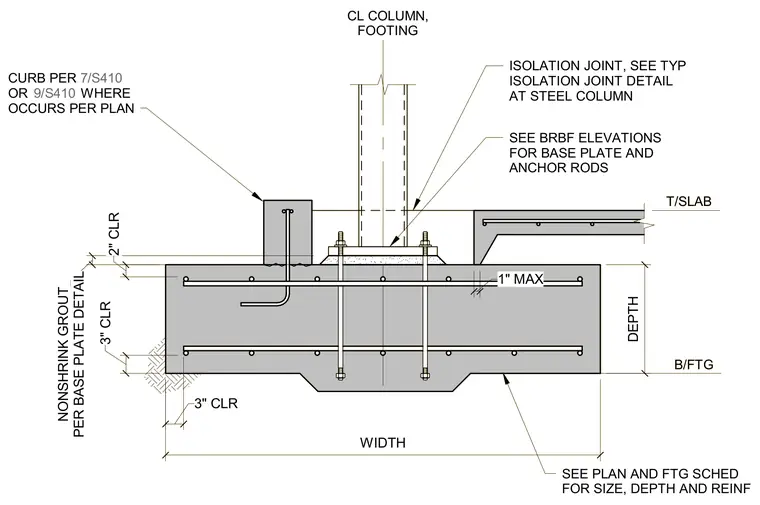

A structural steel column is supported by a reinforced concrete footing and base plate assembly. A layer of nonshrink grout is placed beneath the base plate, with dimensions and anchor rods coordinated per the buckling-restrained braced frame elevations. An isolation joint is detailed adjacent to the steel column where it meets the top of the slab. A concrete curb is located adjacent to the column, detailed per specific reference sheets. The concrete footing includes top and bottom reinforcing steel with specified concrete clearances.
