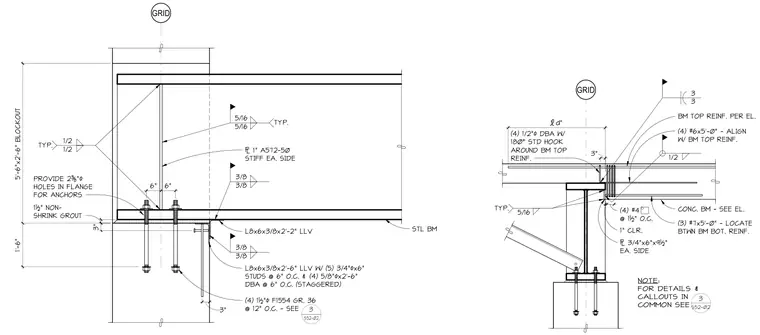

A steel beam connection bears on a concrete element using structural angles and a system of embedded anchor bolts and dowel bars. The connection incorporates an L8x6x3/8 angle seat welded to the steel beam with three-eighths-inch fillet welds, anchored with four 1-1/2-inch diameter ASTM F1554 Grade 36 anchor bolts spaced at 12 inches on center within a 5-foot-6-inch by 2-foot-6-inch blockout. A 1-inch thick A572-50 stiffener plate is welded to each side of the beam web with five-sixteenths-inch fillet welds. Additional shear studs and deformed bar anchors are welded to the connection angles, embedded alongside reinforcing bar groups including #4 ties at 1-1/2 inches on center, #6 top reinforcing bars, and #7 bottom reinforcing bars. The assembly is finished with a 1-1/2-inch layer of non-shrink grout beneath the base plate.
GRID 6" 6" STL BM (4) 1½"& F1554 GR. 36 @ 12" O.C. - SEE 1/2 1/2 TYP. 5'-6"x2'-6" BLOCKOUT 1'-6" 5 1" A572-50 STIFF EA. SIDE 5/16 5/16 TYP. PROVIDE 29"& HOLES IN FLANGE FOR ANCHORS 1 1 /2" 3" 3" 1½" NON- SHRINK GROUT 3/8 3/8 L8x6x3/8x2'-2" LLV 3/8 3/8 L8x6x3/8x2'-6" LLV W/ (5) 3/4"&x6" STUDS @ 6" O.C. & (4) 5/8"&x2'-6" DBA @ 6" O.C. (STAGGERED) 3 S52-02 GRID NOTE: FOR DETAILS & CALLOUTS IN COMMON SEE 3 S52-02 1 " 4 1 / 2" 1" CLR. (4) #4 @ 1½" O.C. " d" 3" 5 3/4"x6"x9½" EA. SIDE (4) 1/2"& DBA W/ 180° STD HOOK AROUND BM TOP REINF. BM TOP REINF. PER EL. (4) #6x5'-0" - ALIGN W/ BM TOP REINF. (3) #7x5'-0" - LOCATE BTWN BM BOT. REINF. CONC. BM - SEE EL. 3 3 5/16 TYP. 1/2
