Structural · S-7SMGF

Typical Top of Wall at Roof Condition

Materials

Timber / Wood

Elements

Beams Walls Roofs Decks Arches

Connections

Deck Attachment Timber / Mass-Timber Connection

About this detail

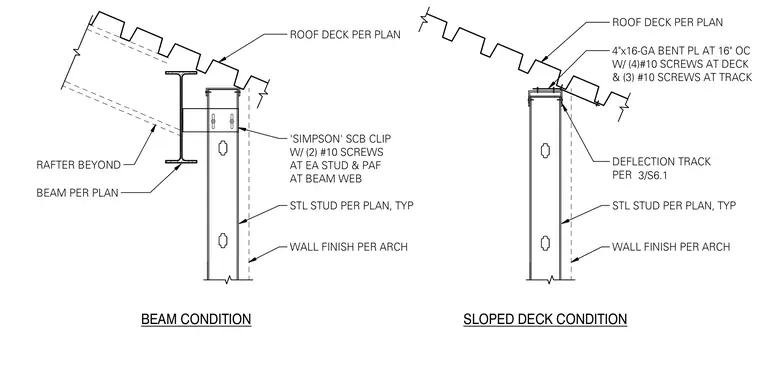

The wall assembly consists of typical steel studs finished per architectural specifications, capped at the top with a deflection track or connected to a structural steel beam. In the beam condition, the steel stud framing connects to the beam web using a Simpson SCB clip secured with two number ten screws at each stud and a powder-actuated fastener at the beam web, with a rafter shown beyond. In the sloped deck condition, the roof deck bears on a four-inch by sixteen-gauge bent plate deflection track installed at sixteen inches on center, secured with four number ten screws at the deck and three number ten screws at the track. The roof deck follows the slope overhead while maintaining the top of the wall framing.
