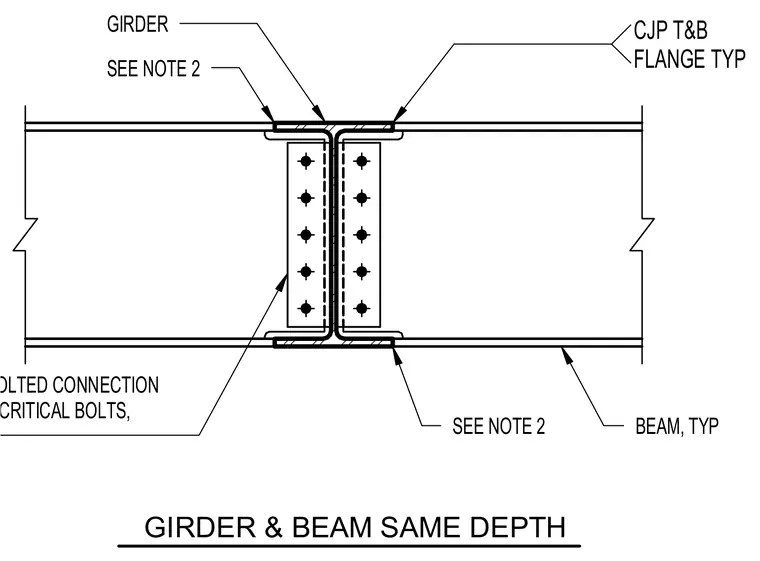

This structural connection details a beam framing into a girder of the same structural depth. The connection features complete joint penetration welds at the top and bottom flanges with reference to note two. A typical bolted connection utilizing slip critical bolts secures the beam web to the girder web.
TYPICAL BOLTED CONNECTION WITH SLIP CRITICAL BOLTS, BEAM, TYP SEE NOTE 2 GIRDER CJP T&B FLANGE TYP SEE NOTE 2 GIRDER & BEAM SAME DEPTH
