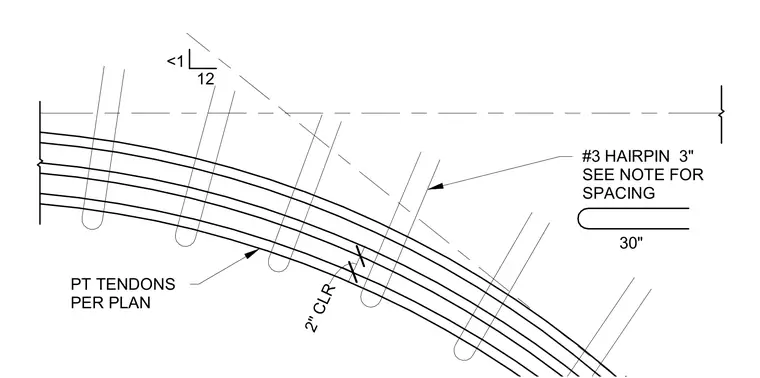

Post-tensioned tendons follow a horizontal curve layout requiring specialized hairpin reinforcement detailing. Number 3 reinforcing bar hairpins measuring thirty inches in length are positioned along the curve with two inches of clear cover. Spacing of the hairpins follows project notes based on the curvature ratio of less than one to twelve. Tendons are installed per structural framing plans.
