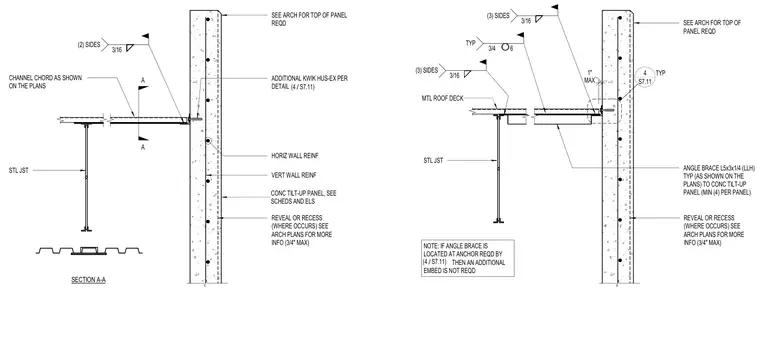

A structural connection joins a steel channel chord and a concrete tilt-up wall panel featuring a steel joist supporting a metal roof deck. A channel chord connects to the concrete tilt-up panel using additional Kwik Hus-Ex anchors per detail 4/S7.11 with a three-sided three-sixteenth-inch fillet weld. An angle brace measuring L5x3x1/4 connects the steel joist to the concrete tilt-up panel with a minimum of four anchors per panel. Horizontal and vertical wall reinforcement are embedded within the concrete panel alongside architectural reveals or recesses up to three-quarters of an inch max.
A A SEE ARCH FOR TOP OF PANEL REQD CHANNEL CHORD AS SHOWN ON THE PLANS HORIZ WALL REINF VERT WALL REINF CONC TILT-UP PANEL, SEE SCHEDS AND ELS SECTION A-A STL JST ADDITIONAL KWIK HUS-EX PER DETAIL 3/16 (2) SIDES / (4 S7.11) REVEAL OR RECESS (WHERE OCCURS) SEE ARCH PLANS FOR MORE INFO (3/4" MAX) SEE ARCH FOR TOP OF PANEL REQD NOTE: IF ANGLE BRACE IS LOCATED AT ANCHOR REQD BY THEN AN ADDITIONAL EMBED IS NOT REQD ANGLE BRACE L5x3x1/4 (LLH) TYP (AS SHOWN ON THE PLANS) TO CONC TILT-UP PANEL (MIN (4) PER PANEL) MTL ROOF DECK MAX 1" STL JST S7.11 4 TYP 3/16 (3) SIDES 3/4 6 TYP 3/16 (3) SIDES / (4 S7.11) REVEAL OR RECESS (WHERE OCCURS) SEE ARCH PLANS FOR MORE INFO (3/4" MAX)
